| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

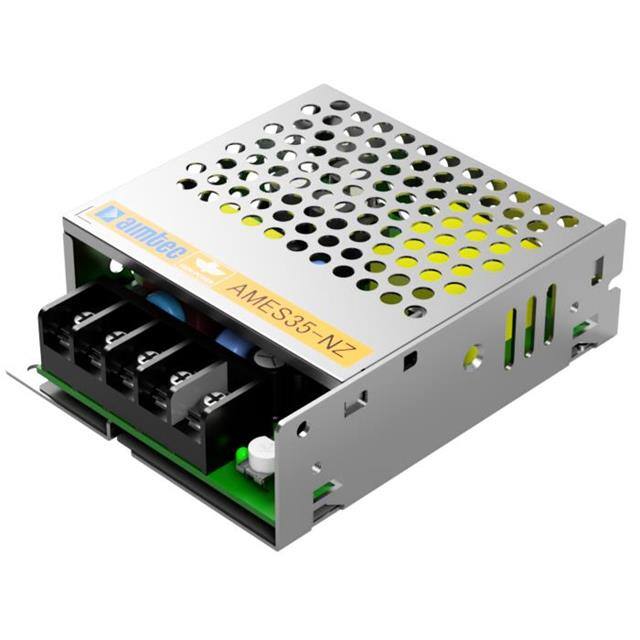

The Aimtec AMES35-12SNZ is an enclosed AC-DC converter designed for reliable power conversion in various applications. It offers a universal input voltage range of 90-264VAC and a regulated 12V output with a maximum power of 36W.
Key electrical specifications include an output current of 3A, an adjustable output voltage range of 10.2-13.8V, and typical efficiency of 86% at 230VAC. The converter provides 4000VAC isolation for enhanced system safety and reliability. It also includes standard protection features such as output short circuit, over-current, and over-voltage protection.
Designed for ease of integration, the AMES35-12SNZ features a chassis mount type and operates within a wide temperature range of -30°C to 70°C. Its compact dimensions (99.1mm x 82.0mm x 30.0mm) make it suitable for space-constrained designs. The converter is compliant with safety standards 60335-1 and 62368-1, carrying cURus approval.
This series is suitable for applications such as grid power, industrial controls, instrumentation, and communication systems.
The AC input range is 90-264 VAC and the DC input range is 127-370 VDC.
The output voltage is 12V and the maximum output current is 3A, providing 36W of power.
The operating temperature range is -30°C to +70°C with derating.
It includes output short circuit, over-current, and over-voltage protection.
The isolation voltage is 4000 VAC.
It is an enclosed package designed for chassis mounting.
