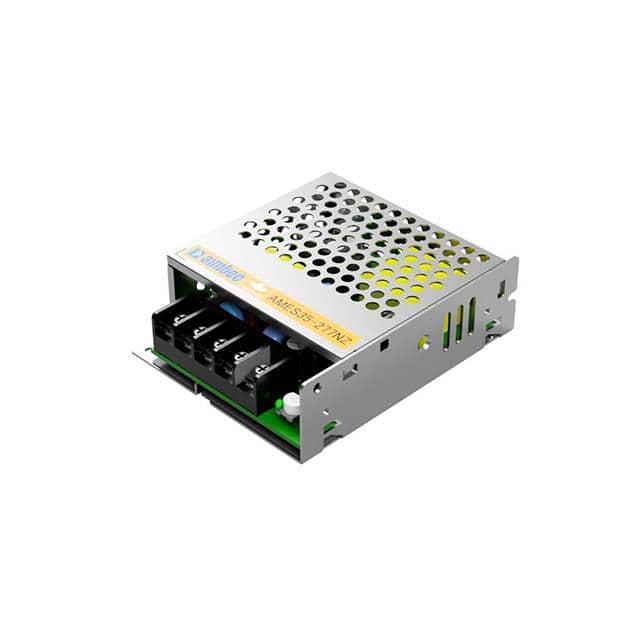

The Aimtec AMES35-12S277NZ is a 36W AC/DC converter designed for reliable power conversion. It provides a stable 12V output with an efficiency of 85%. The unit is enclosed and designed for chassis mounting, making it suitable for integration into various systems.
Key electrical specifications include an input voltage range of 85-305 VAC or 120-430 VDC, an output current of 3A, and an isolation voltage of 4 kV. The operating temperature range is -30°C to 70°C with derating. The converter meets safety standards including 60335-1 and 62368-1.
This AC/DC converter is suitable for applications in household appliances and commercial ITE (Information Technology Equipment). Its dimensions are 99.0mm x 82.0mm x 30.0mm. The RoHS status is listed as RoHS3 Compliant, MSL is 1, and REACH status is Unaffected, though these compliance details are noted as low confidence from the source database.
85 to 305 VAC or 120 to 430 VDC.
12V at 3A.
36W.
85%.
4kV.
-30°C to 70°C with derating.
Enclosed package with chassis mount.
