AMES200-5SNZ-P
Aimtec

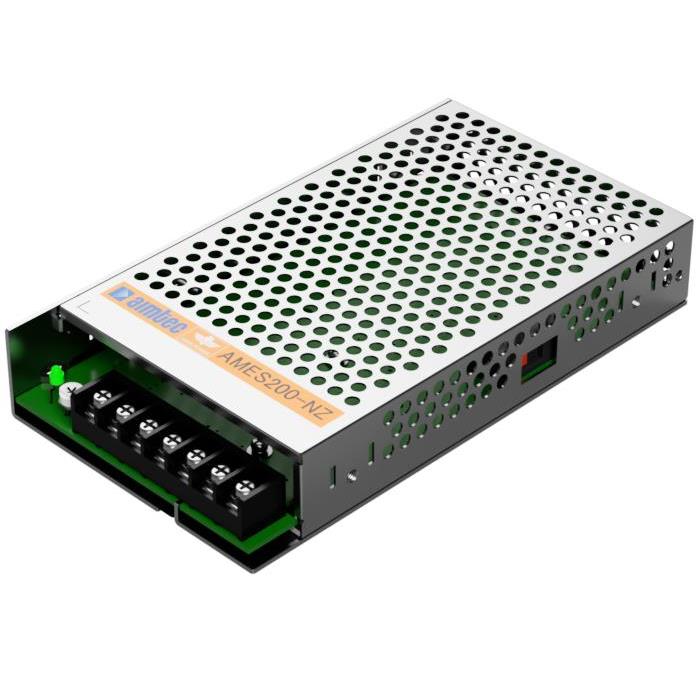

The Aimtec AMES200-5SNZ-P is an enclosed AC/DC converter with a 5V output and 150W power rating. It features 87% efficiency and RoHS3 compliance.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |
The Aimtec AMES200-5SNZ is an enclosed AC/DC converter designed for reliable power conversion. It provides a single 5V output with a maximum current of 30A, delivering a total power of 150W. The converter operates with an efficiency of 87% and features adjustable output capabilities.
Designed for versatility, it accepts a wide input voltage range of 90-264 VAC or 240-373 VDC. The unit offers 3 kV of isolation voltage and operates within a temperature range of -30°C to 70°C with derating. Its dimensions are 179.0mm x 99.0mm x 30.0mm, making it suitable for chassis mounting.
This AC/DC converter is approved by agencies including CB, CE, EN, IEC, and UL, and complies with standards such as 60335-1 and 62368-1. It is suitable for applications in household appliances and ITE (Commercial) environments.
The converter provides a nominal 5V output at 30A.
It accepts 90-264 VAC or 240-373 VDC.
The rated output power is 150W.
Efficiency is rated at 87%.
It operates from -30°C to 70°C with derating.
Size is 179.0mm x 99.0mm x 30.0mm and it is chassis mount.
It is certified under CB, CE, EN, IEC, and UL to standards 60335-1 and 62368-1.
