| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

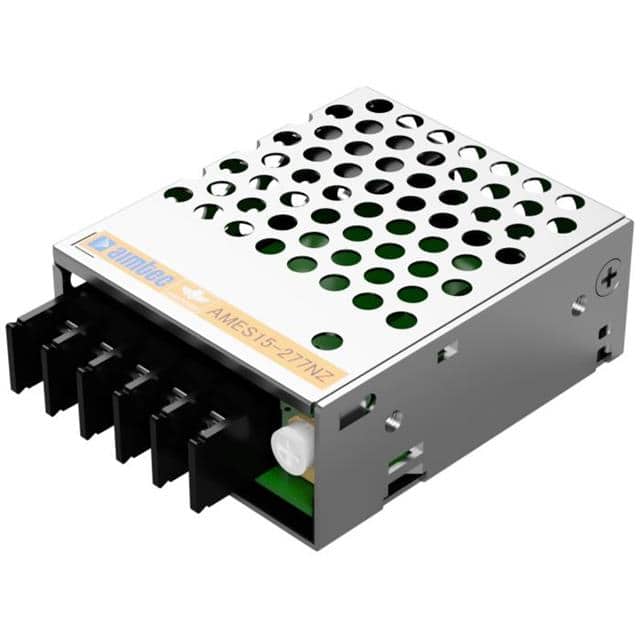

The Aimtec AMES15-24S277NZ is an enclosed AC/DC converter designed for various applications. It delivers 15W of power with a regulated 24V output and a maximum current of 625 mA.
This converter offers a universal input voltage range of 85-305VAC and a DC input capability of 100-430VDC. It provides a high isolation voltage of 4000VAC for enhanced system safety and reliability. The operating temperature range is -30°C to 70°C with derating.
Key electrical specifications include an efficiency of 83% at 230VAC and typical ripple and noise of 150mV(p-p). It features adjustable output, DC input capability, and universal input. The unit is chassis mountable.
Compliance includes RoHS3, REACH Unaffected, and MSL 1. The AMES15-24S277NZ is suitable for ITE (Commercial) applications and meets the 62368-1 standard.
The output voltage is 24V.
The maximum output current is 625 mA.
The power rating is 15W.
The input voltage range is 85-305VAC.
The isolation voltage is 4000VAC.
The operating temperature range is -30°C to 70°C with derating.
The RoHS status is RoHS3 Compliant.
