| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

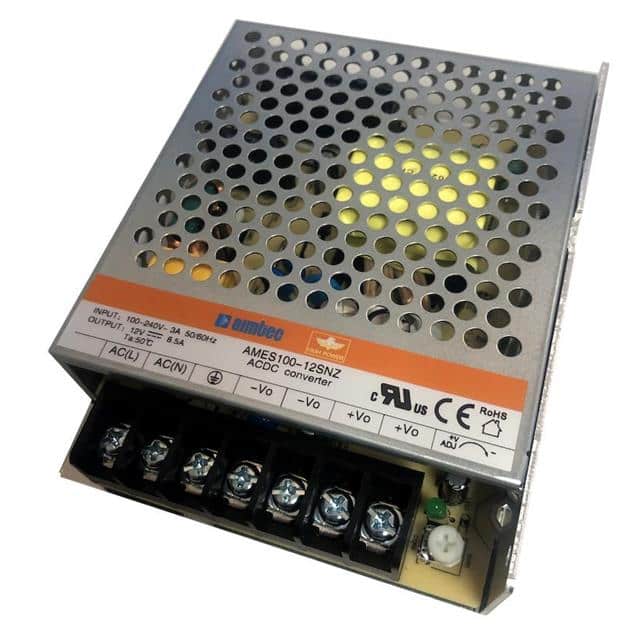

The Aimtec AMES100-12SNZ-P is an enclosed AC/DC converter designed for reliable power conversion. It offers a universal input voltage range of 90-264VAC and a DC input range of 127-370VDC.
This power supply delivers a regulated 12V output at a maximum current of 8.5A, providing up to 102W of power. Key electrical specifications include an efficiency of up to 88% at 230VAC and an isolation voltage of 4000VAC. It also features output short circuit, over-current, and over-voltage protection for enhanced system safety.
The AMES100-12SNZ-P operates within a wide temperature range of -30°C to 70°C, with derating applied at higher temperatures. Its dimensions are 129.0mm x 97.0mm x 30.0mm, and it is designed for chassis mounting.
Applications for this series include household appliances, industrial equipment, and ITE (Information Technology Equipment). It complies with safety standards such as 60335-1 and 62368-1, and holds cURus approval.
The output voltage is 12V.
The maximum output current is 8.5A.
The power rating is 102W.
The input voltage range is 90-264VAC.
The operating temperature range is -30°C to 70°C.
It uses chassis mount.
