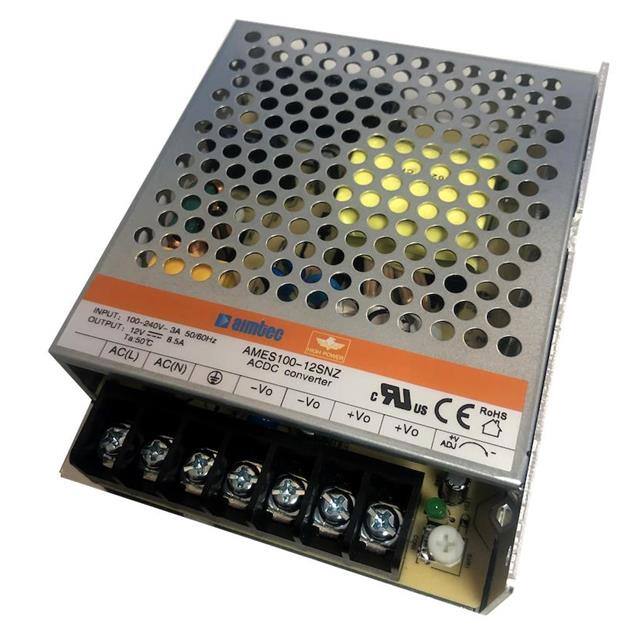

The Aimtec AMES100-12S277NZ is an enclosed AC-DC converter designed for cost-effectiveness and reliability. It offers a universal input voltage range of 85-305VAC and a regulated 12V output, delivering up to 102W of power.
This converter series operates within a temperature range of -30°C to 70°C and provides high isolation of 4000VAC for enhanced system safety. Standard protection features include output short circuit protection (OSCP), output over-current protection (OCP), and output over-voltage protection (OVP). Its high MTBF of 300,000 hours indicates robust performance.
Suitable for various applications such as grid power, industrial controls, instrumentation, and communication systems, the AMES100-12S277NZ is built for demanding environments. It features chassis mounting for easy integration into system designs.
85-305VAC (120-430VDC).
12V at 8.5A, adjustable from 10.2-13.8V.
-30°C to +70°C with derating.
4000VAC.
86-87% typical at 230VAC.
129.0 x 97.0 x 30.0 mm, chassis mount, enclosed.
CB, CE, EN, IEC, UL certifications per standards 60335-1 and 62368-1.
