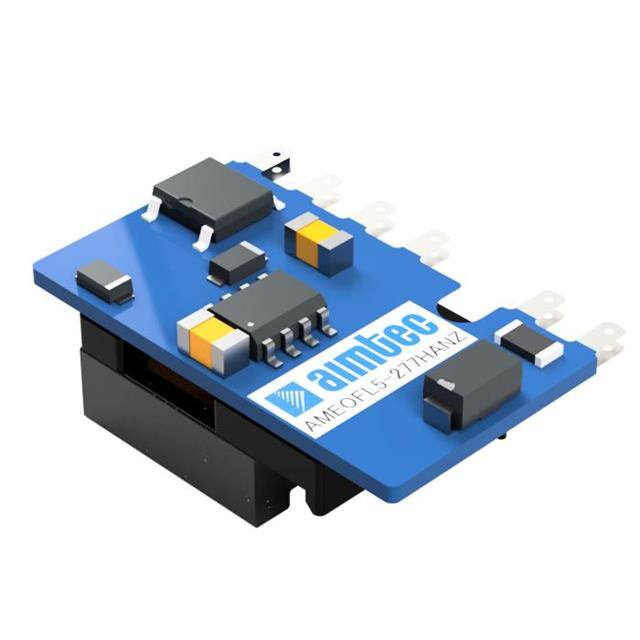

The Aimtec AMEOFL5-15S277HANZ is a highly efficient, green 5W AC-DC converter series. It features an ultra-wide input range accepting either AC or DC voltage, high efficiency, compact size in an open-frame, low power consumption, and CLASS II reinforced insulation.
This 5W converter offers a 15V output voltage and operates from an input voltage range of 85-305VAC. It boasts an isolation voltage of 3600VAC for improved reliability and system safety. The operating temperature range is -40°C to +85°C, making it suitable for various industrial applications.
The AMEOFL5-15S277HANZ is designed for chassis mounting and comes in an open frame package. Its key features include output short circuit protection and output over-current protection. This series meets standards such as 60335-1 and 62368-1, making it suitable for industrial control, electric power, instrumentation, and smart home applications.
The output voltage is 15V.
The power rating is 5.1W.
The input voltage range is 85-305VAC.
The operating temperature range is -40°C to 85°C.
It comes in an open frame package.
Applications include industrial control, electric power, instrumentation, and smart home.
