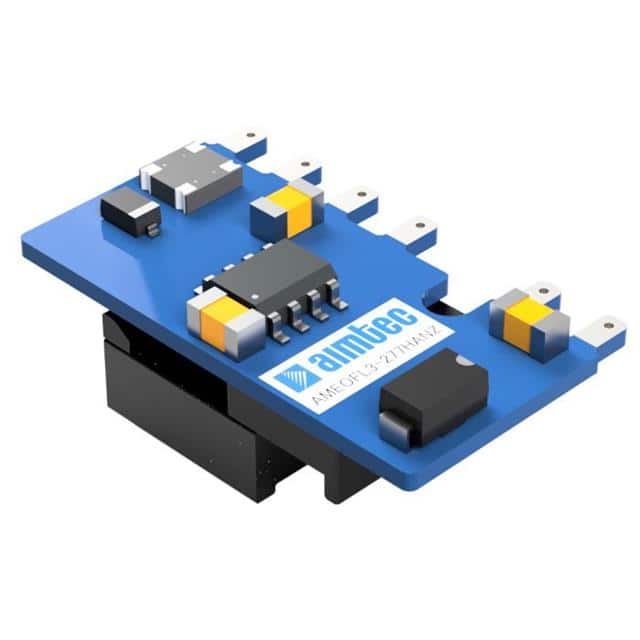

The Aimtec AMEOFL3-9S277HANZ is a highly efficient, green 3W AC-DC converter from the AMEOFL3 series. It is designed with an open-frame construction and chassis mount for easy integration.
This converter offers a universal input voltage range of 85-305VAC and accepts DC input from 70-430VDC. It provides a stable 9V output with a maximum current of 333mA. Key electrical specifications include a typical efficiency of 76% at 230VAC, voltage accuracy of ±5%, line regulation of ±1.5%, and load regulation of ±3%. The ripple and noise are kept to a maximum of 150mVp-p.
Designed for reliability and safety, the AMEOFL3-9S277HANZ boasts an isolation voltage of 3000VAC. It includes essential protections such as output short circuit and over-current protection with auto-recovery. The operating temperature range is -40°C to +85°C, making it suitable for demanding environments.
Applications for this series include industrial control, electric power, instrumentation, and smart home devices. It meets safety standards such as 60335-1 and 62368-1 and is classified as Class II.
85-305 VAC and 70-430 VDC.
9V output at 333 mA maximum.
Open frame package, chassis mount.
-40°C to 85°C.
cURus approval, safety class II, meeting standards 60335-1 and 62368-1.
Over current protection with auto recovery at ≥110% of Iout, and short circuit protection with hiccup, continuous, auto recovery.
