| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

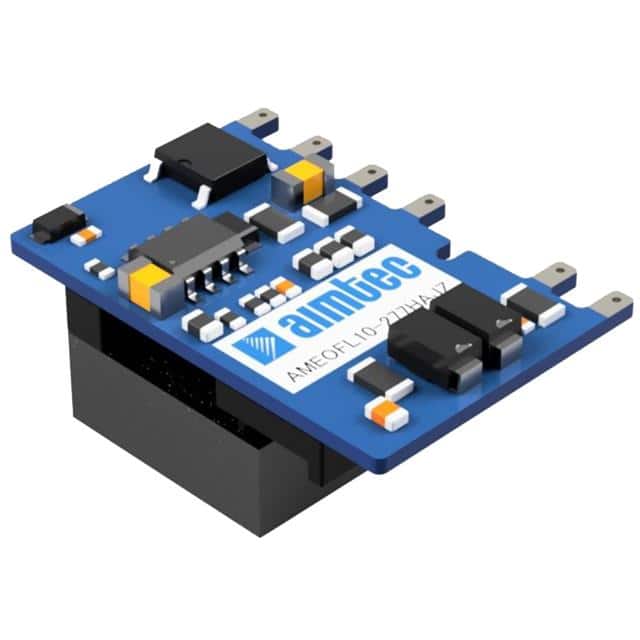

The Aimtec AMEOFL10-3S277HAJZ is a highly efficient, green 10W AC-DC converter series, specifically this model offers 6.6W of power with a 3.3V output.
Key electrical specifications include a universal input voltage range of 85-305VAC and 90-430VDC, with a maximum output current of 2A. It boasts a typical efficiency of 70% at 230VAC and an isolation voltage of 3600VAC for enhanced safety and reliability. The converter also features low ripple and noise, with a maximum of 150mV p-p.
Designed for demanding environments, this converter operates within a temperature range of -40°C to +85°C, with derating as needed. It includes standard protections such as output short circuit and over-current protection. The Mean Time Between Failures (MTBF) is rated at 1,000,000 hours.
This AC-DC converter comes in an open-frame, 6-SIP module package suitable for through-hole mounting. It is designed for applications in ITE (Commercial) sectors and holds CE and cULus agency approvals, adhering to standard 62368-1.
The output voltage is 3.3V.
The maximum output current is 2A.
The input voltage range is 85 to 305 VAC or 90 to 430 VDC.
The operating temperature range is -40°C to 85°C.
The isolation voltage is 3600 VAC.
It comes in an open frame, 6-SIP module package.
