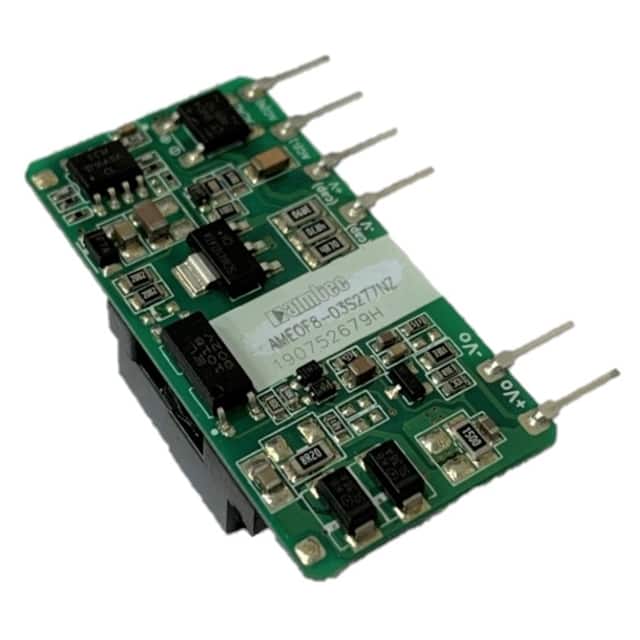

The Aimtec AMEOF8-09SL277NZ is a highly efficient green 8W AC-DC converter from the AMEOF8 series. It is designed with a universal input voltage range of 85-305VAC and a DC input range of 100-430VDC, making it versatile for various power applications.
This converter provides a single 9V output with a maximum current of 0.88A, delivering up to 7.9W of power. It features a high isolation voltage of 3000VAC, contributing to system safety and reliability. The operating temperature range is -40°C to 85°C, with derating applied at higher temperatures.
Designed for applications with size constraints, the AMEOF8-09SL277NZ comes in an open frame package with through-hole mounting. It includes essential protection features such as output short circuit protection (OSCP), output over-current protection (OCP), and output over-voltage protection (OVP). Its efficiency is rated at 75% at 230VAC input.
Suitable for industrial controls, instrumentation, and smart home applications, this converter meets the needs of multiple industries. It also boasts a high MTBF of 300,000 hours.
The input voltage range is 85-305 VAC and 100-430 VDC.
The output is 9V at up to 0.88A maximum, with a power rating of 8W.
The operating temperature range is -40°C to 85°C with derating.
It is a 16-SIP module with 6 leads, through-hole mounting.
Output short circuit protection, output over-current protection, and output over-voltage protection are included.
The input-to-output isolation voltage is 3000 VAC.
The typical efficiency is 75% at 230 VAC input.
