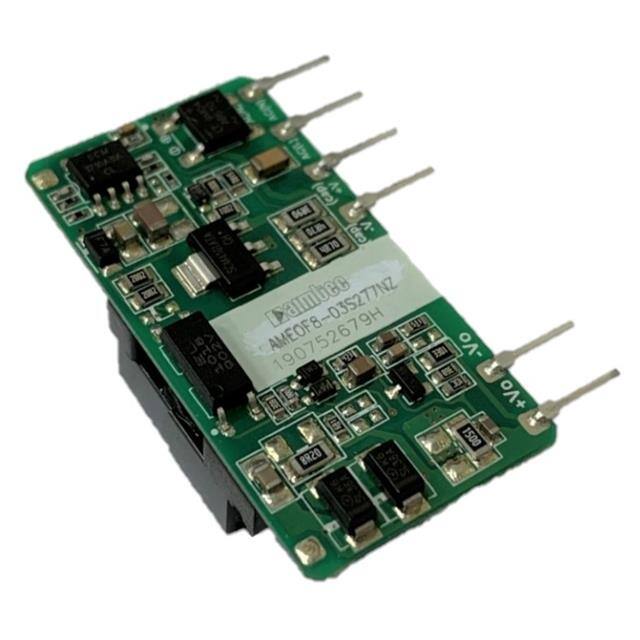

The Aimtec AMEOF8-05SL277NZ-120 is an 8W AC-DC converter from the AMEOF8 series, designed for efficiency and reliability. It offers a universal input voltage range of 85-305VAC and a DC input range of 100-430VDC, making it suitable for global applications.
This converter provides a single 3.3V output with a maximum current of 1.60A, delivering up to 8W of power. Key electrical specifications include a high isolation voltage of 3000VAC and a low ripple and noise level of 150mVp-p maximum. The efficiency is rated at 74% at 230VAC.
Designed for demanding environments, the AMEOF8-05SL277NZ-120 operates across a wide temperature range of -40°C to 85°C. It includes essential protections such as output short circuit, over-current, and over-voltage protection. The open frame package with through-hole mounting is ideal for applications with size constraints.
This series is suitable for industrial controls, instrumentation, smart home applications, household appliances, and ITE (Commercial) uses. It meets safety standards such as 60335-1 and 62368-1.
85-305 VAC or 100-430 VDC.
3.3V at up to 1.6A.
-40°C to 85°C.
16-SIP Module, 6 Leads, Through Hole.
3000 VAC.
74% at 230VAC.
