| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

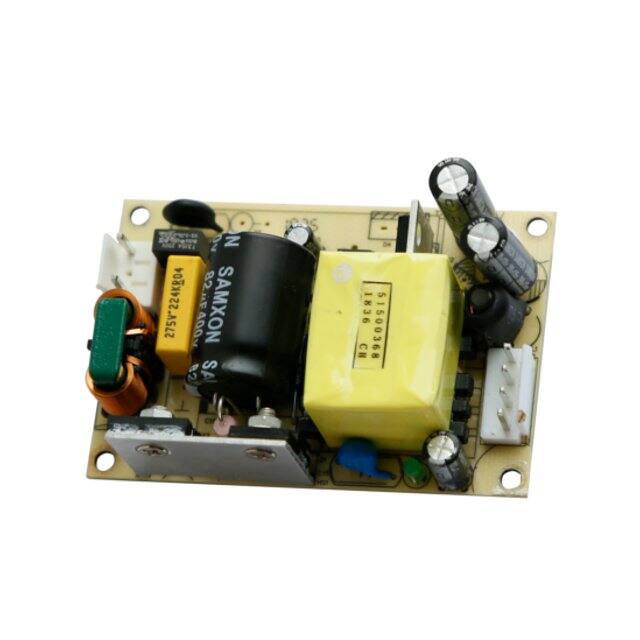

The Aimtec AMEOF65-24SJZ is a 65W open frame AC/DC converter designed for industrial, office, and civil applications. It accepts a universal AC input voltage range of 85-264VAC and also supports a DC input range of 100-370VDC.
This converter provides a regulated 24V output with a maximum current of 2.71A. Key electrical specifications include an efficiency of up to 87% and a low ripple and noise level of 150mVp-p. It offers high isolation of 3000VAC and includes protection features such as over-current, over-voltage, and short-circuit protection.
The operating temperature range is -25°C to 70°C. The physical dimensions are 76.2mm in length, 50.8mm in width, and 30.0mm in height. It is suitable for chassis mounting.
Compliance includes EMC standards IEC/EN61000-4 and CISPR32/EN55032, and safety standards IEC/EN/UL 62368-1. The AMEOF65-24SJZ is designed for applications like modems, printers, and telecom devices.
The input voltage range is 85-264VAC and 100-370VDC.
The output voltage is 24V with a maximum current of 2.71A.
The power rating is 65W.
The efficiency is up to 87%.
It provides an isolation voltage of 3000VAC.
The operating temperature range is -25°C to 70°C.
It includes over-current, over-voltage, and short-circuit protection.
