| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

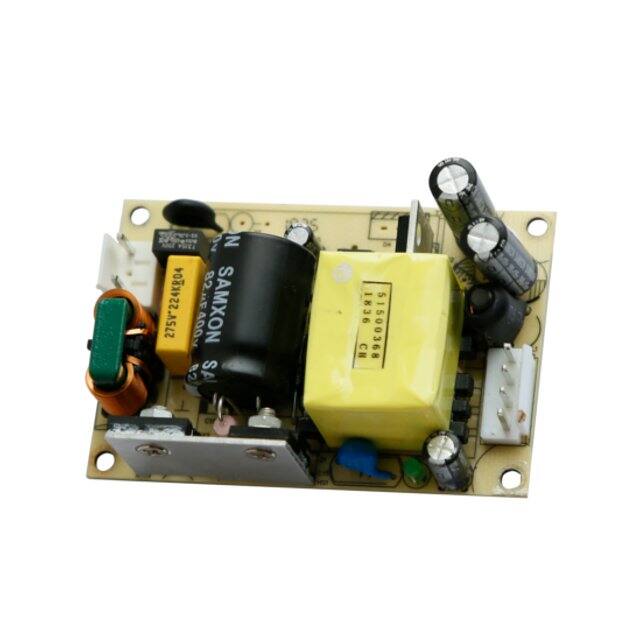

The Aimtec AMEOF65-15SJZ is a 65W AC/DC converter designed for open frame applications. It accepts a universal AC input voltage range of 85-264VAC and provides a regulated 15V DC output.
This converter operates within a temperature range of -25°C to +70°C and offers high isolation of 3000VAC. Key electrical specifications include a typical efficiency of 85% at 230VAC, output current of 4.34A, and low ripple and noise of 150mVp-p.
Designed for ITE (Commercial) applications, the AMEOF65-15SJZ features over-current, over-voltage, and short-circuit protection. Its chassis mount type and open frame construction make it suitable for integration into various industrial and office equipment.
Compliance includes RoHS3, REACH Unaffected, and an MSL of 1. The unit meets IEC/EN/UL 62368-1 standards and offers EMC compliance.
85-264VAC or 100-370VDC.
15V at 65W.
-25°C to 70°C.
76.2mm x 50.8mm x 30.0mm, chassis mount open frame.
3000VAC.
Over current protection (≥120% of Iout), over voltage protection, and short circuit protection (hiccup, continuous).
85% at 230VAC.
