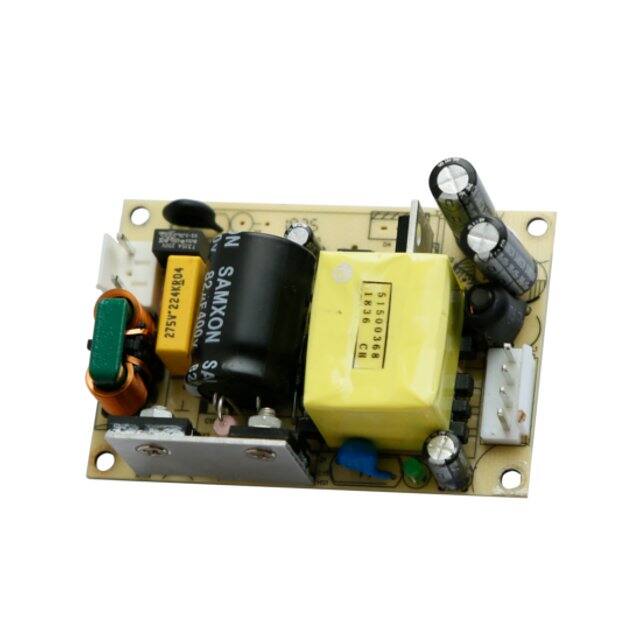

The Aimtec AMEOF65-12SJZ is an open frame AC/DC converter designed for industrial, office, and civil applications. It provides a regulated 12V output with a maximum current of 5.42A, delivering up to 65W of power.
This converter features a universal input voltage range of 85-264VAC, accepting DC input from 100-370VDC. It boasts high efficiency up to 85% at 230VAC and reinforced isolation of 3000VAC. The operating temperature range is -25°C to 70°C.
Protection features include output short circuit, over-current, and over-voltage protection. The AMEOF65-12SJZ is suitable for ITE (Commercial) applications and is designed for chassis mounting. Its compact dimensions are 76.2mm x 50.8mm x 30.0mm.
The AMEOF65-12SJZ provides a nominal 12V output with a maximum current of 5.42A, delivering up to 65W.
The input voltage range is 85-264VAC for AC input and 100-370VDC for DC input.
The operating temperature range is -25°C to 70°C.
The isolation voltage is 3000VAC.
The converter includes over-current protection (≥120% of Iout), over-voltage protection, and hiccup-mode short-circuit protection.
The typical efficiency is 85% at 230VAC.
The ripple and noise is 150mVp-p (measured at 20MHz bandwidth).
