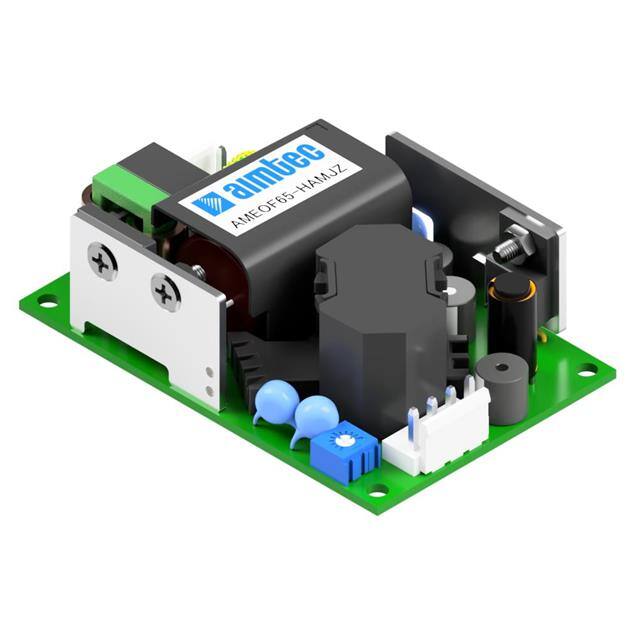

The Aimtec AMEOF65-12SHAMJZ is an AC to DC converter designed for various applications. It operates with an AC input voltage range of 80 to 264V and provides a stable DC output voltage of 12V at a current of 5.42A, delivering a total power of 65W. This converter boasts an efficiency of 89% and an isolation voltage of 4kV.
Designed with an open frame and chassis mount, the AMEOF65-12SHAMJZ is suitable for integration into systems requiring household appliances, ITE (Commercial), and medical applications. It operates within a temperature range of -40°C to 70°C with derating. The unit complies with standards such as 60335-1, 60601-1, and 62368-1. Its dimensions are 76.2mm x 50.8mm x 26.4mm.
The AC input range is 80 to 264VAC and the DC input range is 100 to 370VDC.
The output is 12V DC at 5.42A (65W total).
It is an open frame module designed for chassis mount installation.
The operating temperature range is -40°C to +70°C with derating above +50°C.
Yes, it provides 4kV input-to-output isolation.
It complies with IEC 60335-1 (household), IEC 60601-1 (medical), and IEC 62368-1 (ITE/audio/video).
Dimensions are 76.2mm length, 50.8mm width, and 26.4mm height (3.00" x 2.00" x 1.04").
