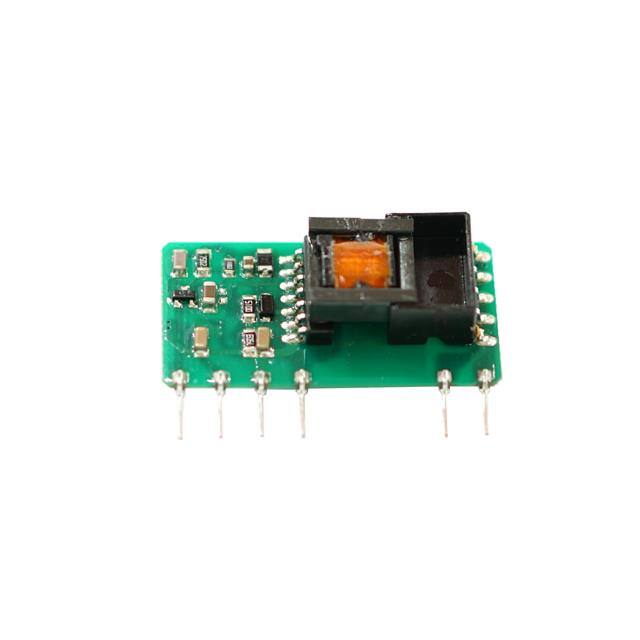

The Aimtec AMEOF5-3.3SBJZ is a compact, open-frame AC/DC converter designed for industrial applications. It offers an ultra-wide input voltage range from 90 to 528VAC and 100 to 745VDC, making it suitable for various power systems, including 3-phase applications.
This converter delivers a stable 3.3V output with a maximum current of 850mA, providing 2.8W of power. Key electrical specifications include 4000VAC I/O isolation, continuous short circuit protection, and over-current protection. It operates with an efficiency of 63% at 230VAC.
The AMEOF5-3.3SBJZ is built to withstand demanding environments, with an operating temperature range of -40°C to 85°C, though derating may apply at higher temperatures. It features low power consumption, rated at less than 0.5W at 528VAC input.
Packaged in a 16-SIP module with through-hole mounting, this converter has dimensions of 44.5mm x 13.0mm x 24.0mm. It meets IEC/UL/EN62368 standards and is classified as a Class II power supply, suitable for applications in industrial automation, test equipment, and 3-phase metering.
90-528 VAC or 100-745 VDC.
16-SIP Module, 6 Leads, through hole mounting.
-40°C to +85°C (with derating).
3.3 V.
63%.
4000 VAC.
Yes, continuous short circuit protection.
