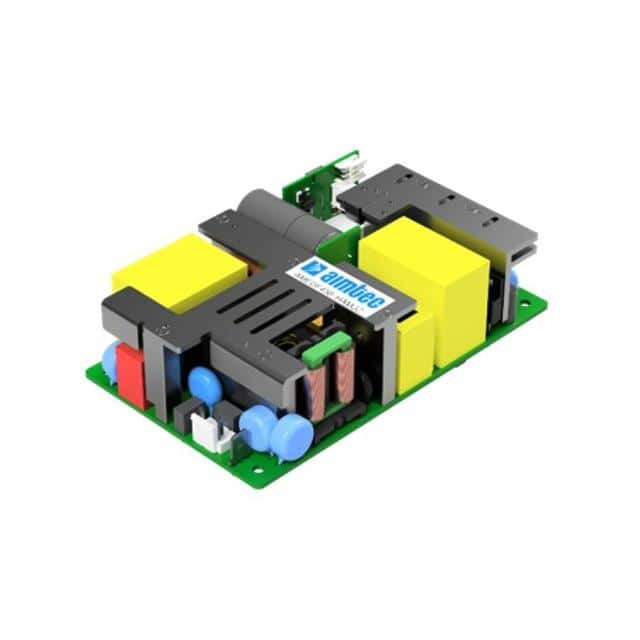

The Aimtec AMEOF450-12SHAMJZ-F is an enclosed AC/DC converter designed for industrial, ITE (Commercial), and medical applications. It provides a nominal output voltage of 12.6V with an adjustable range from 11.4V to 12.6V and a maximum output current of 20.8A, delivering up to 400W of power.
This converter features a universal AC input range of 90-264 VAC and accepts DC input from 127-370 VDC. It boasts a high efficiency of 91% at 230VAC and includes active Power Factor Correction (PFC). The operating temperature range is -40°C to 70°C, with derating specified. It offers 4000 VAC isolation and includes protections for output short circuit, over-current, over-voltage, and over-temperature.
With dimensions of 86.1mm x 43.2mm x 130.0mm, it is designed for chassis mounting. The AMEOF450-12SHAMJZ-F series is suitable for medical system equipment and meets various safety standards including EN62368-1 and IEC/EN/UL60601-1, offering double or reinforced isolation (2xMOPP).
The input voltage range is 90-264 VAC or 127-370 VDC.
The package is enclosed chassis mount.
The operating temperature range is -40°C to 70°C with derating.
The output current is 20.8A.
The efficiency is typically 91%.
The isolation voltage is 4000 VAC.
The power rating is 400W.
