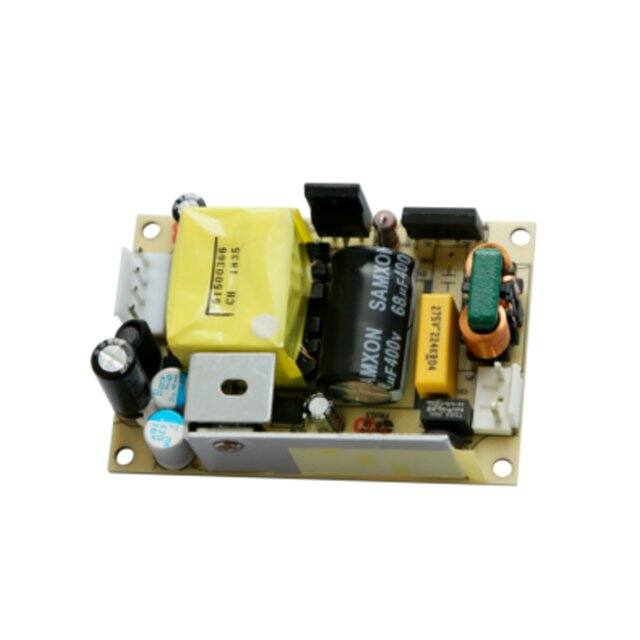

The Aimtec AMEOF45-5SJZ is a compact, open frame AC/DC converter designed for versatile power solutions. It accepts a universal input voltage range of 85-264VAC and provides a regulated 5V output with a maximum power of 40W and a current rating of 8A.
Key features include high efficiency up to 82% at 230VAC, reinforced isolation of 3000VAC, and a wide operating temperature range from -25°C to 70°C. The converter includes protection against output short circuit, over-current, and over-voltage.
With its open frame construction and chassis mount type, the AMEOF45-5SJZ is suitable for various industrial, office, and civil applications. Its design prioritizes reliability and performance in demanding environments.
The output voltage is 5V.
The maximum output power is 40W.
The input voltage range is 85-264VAC.
The operating temperature range is -25°C to 70°C.
The isolation voltage is 3000VAC.
The typical efficiency at 230VAC is 82%.
It supports chassis mount.
