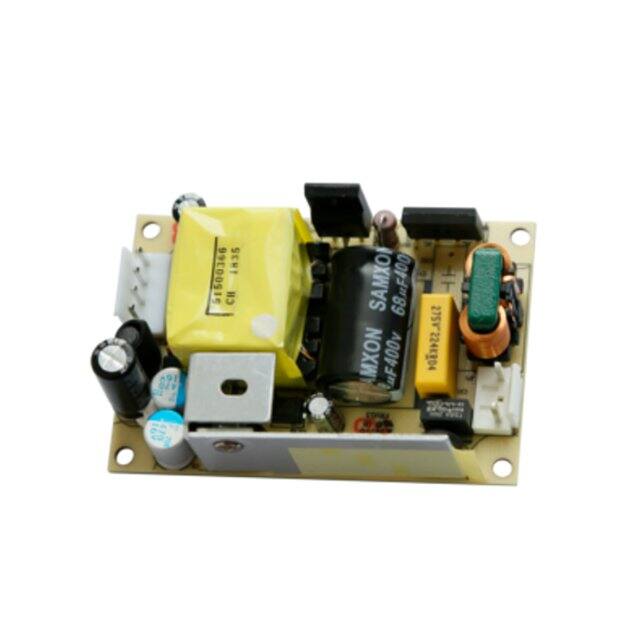

The Aimtec AMEOF45-48SJZ is a compact, open-frame 45W AC-DC converter designed for industrial, office, and civil applications. It features a universal input voltage range of 85-264VAC and accepts DC input from 100-370VDC. The converter provides a regulated 48V output with a maximum current of 940mA.
Key electrical specifications include 3000VAC isolation, up to 87% efficiency, and protection features such as over-current and over-voltage protection. The operating temperature range is -25°C to +70°C. Its dimensions are 76.2mm x 50.8mm x 30.0mm, with a chassis mount type.
This series meets IEC/EN/UL 62368 standards and offers EMC compliance with IEC/EN61000-4 and CISPR32/EN55032. It is suitable for applications like modems, printers, and telecom devices.
The input voltage range is 85-264 VAC or 100-370 VDC.
It provides 48V output at 45W (940mA).
The operating temperature range is -25°C to 70°C.
The dimensions are 76.2mm x 50.8mm x 30.0mm and it is designed for chassis mounting as an open frame module.
It includes over current protection and over voltage protection.
The isolation voltage is 3000 VAC between input and output.
