| Category | |
| Manufacturer Name | |
| Applications | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

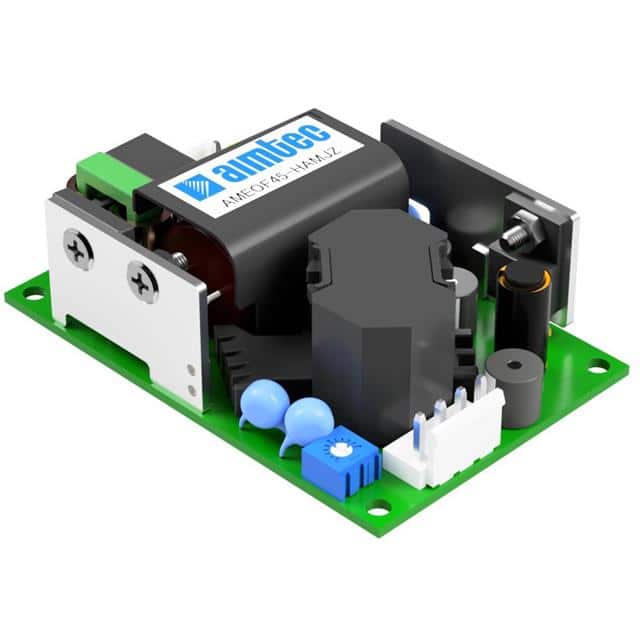

The Aimtec AMEOF45-3SHAMJZ-B is an AC/DC converter suitable for industrial, ITE (Commercial), and medical applications. This enclosed unit is designed for convenient chassis mounting.
Key electrical specifications include an input voltage range of 80 to 264 VAC, providing flexibility for various power grids. It offers two distinct output voltages: 2.97V and 3.63V, with a total power capacity of 26.4W. The converter operates with a high efficiency of 83%, minimizing energy waste.
Mechanically, the unit measures 50.8mm in length, 26.4mm in width, and 76.2mm in height. It operates within a temperature range of -40°C to 85°C, with derating applied at higher temperatures. The AMEOF45-3SHAMJZ-B series is part of Aimtec's 26W offerings.
80 to 264 VAC.
-40°C to 85°C with derating.
Enclosed with tube packaging.
2.97V and 3.63V.
26.4W.
2.
Chassis mount.
