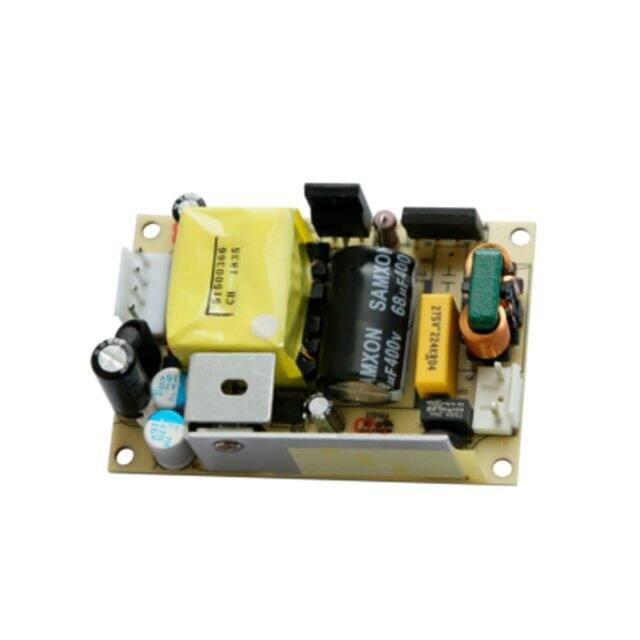

The Aimtec AMEOF45-24SJZ is a compact, open-frame AC/DC converter designed for industrial, office, and civil applications. It provides a 45W output power with a regulated 24V output voltage and a maximum current of 1.88A.
Key electrical specifications include a universal input voltage range of 85-264VAC and a DC input range of 100-370VDC. The converter boasts high efficiency up to 86% and features reinforced isolation of 3000VAC. It includes protection against output short circuit, over-current, and over-voltage.
With a compact size of 76.2mm x 50.8mm x 30.0mm, it is suitable for chassis mounting. The operating temperature range is -25°C to 70°C, making it versatile for various environments. The AMEOF45-JZ series meets EMC compliance standards like IEC/EN61000-4 and CISPR32/EN55032, and adheres to IEC/EN/UL 62368 safety standards.
85-264VAC or 100-370VDC.
24V at 1.88A.
-25°C to 70°C.
86% typical.
3000VAC.
Over-current protection (≥150% Iout) and over-voltage protection (≤7.5VDC).
Open-frame chassis mount.
