| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

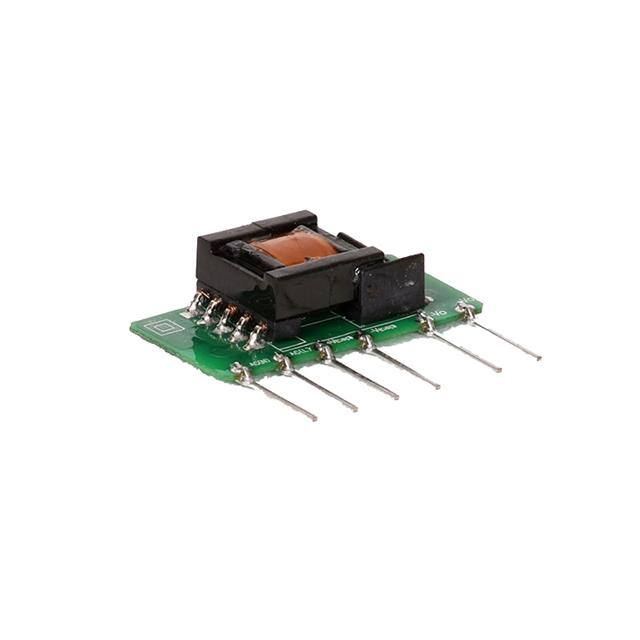

The Aimtec AMEOF1-9SJZ is a compact AC-DC converter from the O Series, designed for single output applications. It operates with an input voltage range of 85-305 VAC or 70-430 VDC, providing a stable 9V output at up to 111mA.
Key electrical specifications include a typical efficiency of 67% and a maximum capacitive load of 100µF. The converter offers line regulation of ±1.5% and load regulation of ±3% for outputs other than 24V. It also features over-current and continuous short-circuit protection with auto-recovery.
Designed for through-hole mounting, this open-frame converter has dimensions of 35mm x 18mm x 11mm. It operates within an ambient temperature range of -40°C to +85°C and boasts an MTBF of over 200,000 hours. The unit is suitable for ITE (Commercial) applications and is approved by cURus.
This model is part of the AMEOF1-JZ series, offering low power consumption and ultra-slim SIP packaging. It meets safety standards including UL 60950-1 and IEC 60950-1.
The input voltage range is 85-305 VAC at 47-63 Hz, or 70-430 VDC.
The output voltage is 9V and the maximum output current is 111mA.
The typical efficiency is 67%.
The operating temperature range is -40°C to +85°C.
It is an open-frame SIP module with 6 leads, designed for through-hole mounting.
