| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Isolation | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Protection | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

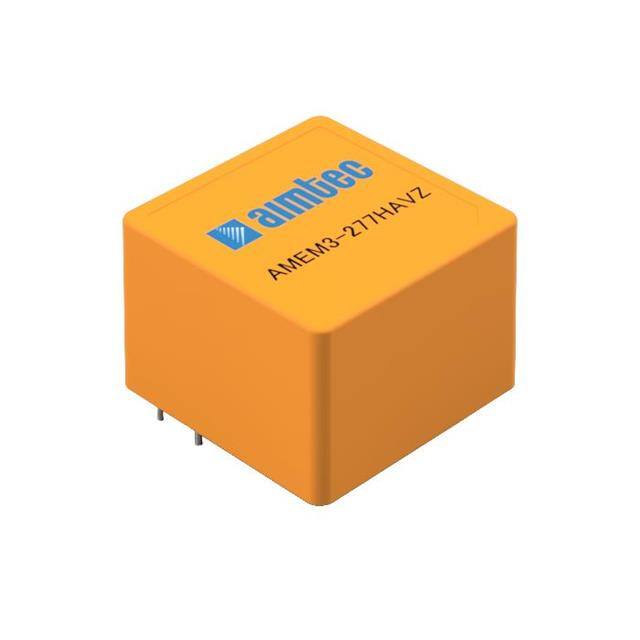

The Aimtec AMEM3-9S277HAVZ-STD is an efficient 3W AC-DC power supply module designed for various applications. It offers a universal input voltage range of 85-305VAC and a single output of 9V with a maximum current of 333mA.
Key electrical specifications include an efficiency of up to 78% and an isolation voltage of 4000VAC. The module is protected against output short circuit, over-current, and over-voltage conditions. It also features low no-load power consumption.
Designed for reliability, the AMEM3-9S277HAVZ-STD operates within a wide temperature range of -40°C to 85°C. Its dimensions are 75.9mm x 31.5mm x 31.0mm, and it is suitable for DIN rail mounting.
This series is suitable for applications such as power grid, LED, instrumentation, industrial controls, communication, and civil applications. Agency approvals include IEC/EN/UL62368, EN60335, and EN61558.
The output voltage is 9V and the maximum output current is 333 mA.
The input voltage range is 85-305 VAC or 100-430 VDC.
The operating temperature range is -40°C to 85°C with derating, and full power is available up to 70°C.
It includes output short circuit, over-current, and over-voltage protection.
The isolation voltage is 4000 VAC.
The typical efficiency is 78% at 230VAC.
The mounting type is DIN Rail.
