| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

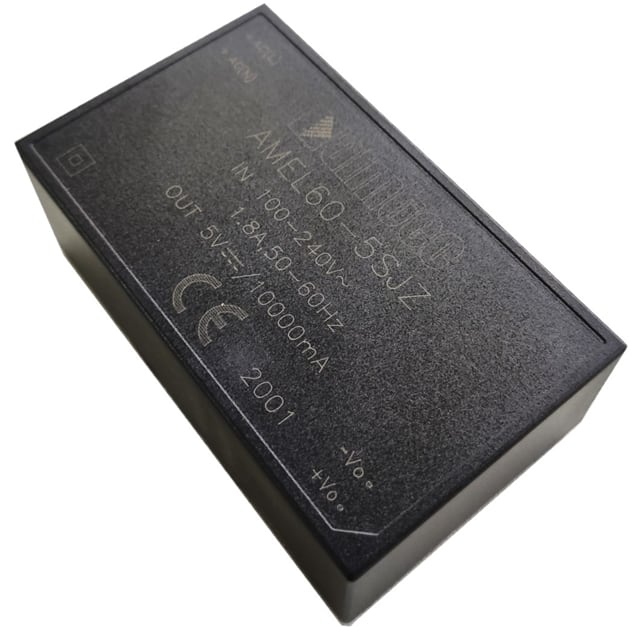

The Aimtec AMEL60-5SJZ is an enclosed AC/DC converter designed for reliable power conversion. It offers a universal input voltage range of 85-264 VAC or 100-370 VDC, making it suitable for various global applications.
This converter provides a regulated 5V output with a maximum current of 10A, delivering up to 50W of power. It boasts an efficiency of 84% at 230VAC and operates within a temperature range of -40°C to 70°C with derating. Key electrical features include 4000VAC isolation, output short circuit protection (OSCP), output over-current protection (OCP), and output over-voltage protection (OVP).
The AMEL60-5SJZ is designed for through-hole mounting and comes in a 4-DIP module package. Its dimensions are 87.0mm in length, 52.0mm in width, and 29.5mm in height. This series is suitable for ITE (Commercial) applications, offering improved reliability and performance through material normalization and production automation.
The output voltage is 5V.
The maximum output current is 10A.
The power rating is 50W.
The input voltage range is 85-264 VAC or 100-370 VDC.
The operating temperature range is -40°C to 70°C.
It is in a 4-DIP Module package.
It is mounted using the through hole method.
