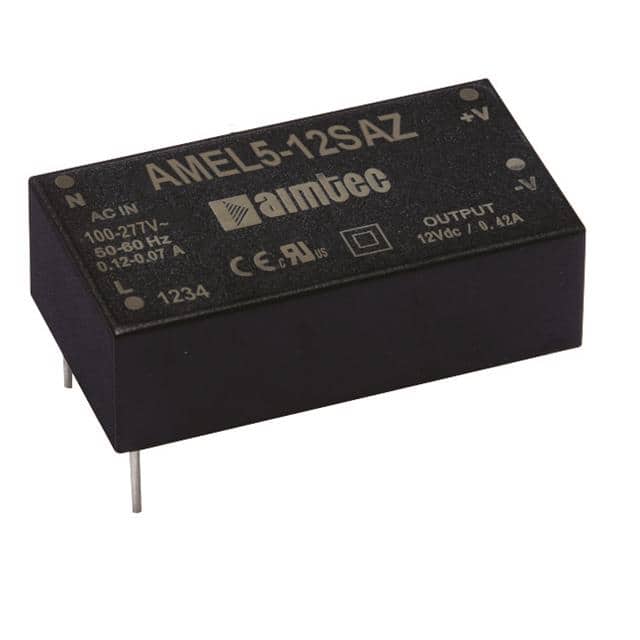

The Aimtec AMEL5-12SGAZ-ST is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single 12V output with a maximum current of 0.42A, delivering a total power of 5W.
This converter features a wide input voltage range of 90-305 VAC or 130-430 VDC, making it versatile for various power sources. It boasts a typical efficiency of up to 76% and operates reliably within an extended temperature range of -40°C to +95°C, with derating above 60°C.
Key electrical specifications include ±2% voltage accuracy, ±1% line and load regulation, and 3000 VAC I/O isolation. Protection features include overload, over voltage, and short circuit protection with auto-recovery. The unit has a compact chassis mount design with dimensions of 86.0mm x 38.0mm x 23.8mm.
Compliance includes CB, CE, and cURus approvals, along with RoHS3 compliance. The MTBF is rated at over 400,000 hours under specific conditions.
The output voltage is 12V.
The maximum output current is 0.42A.
The input voltage range is 90-305 VAC or 130-430 VDC.
The operating temperature range is -40°C to +95°C.
The efficiency at 230 VAC is typically 76%.
It uses chassis mount.
The dimensions are 51.50 x 28.30 x 17.80mm.
