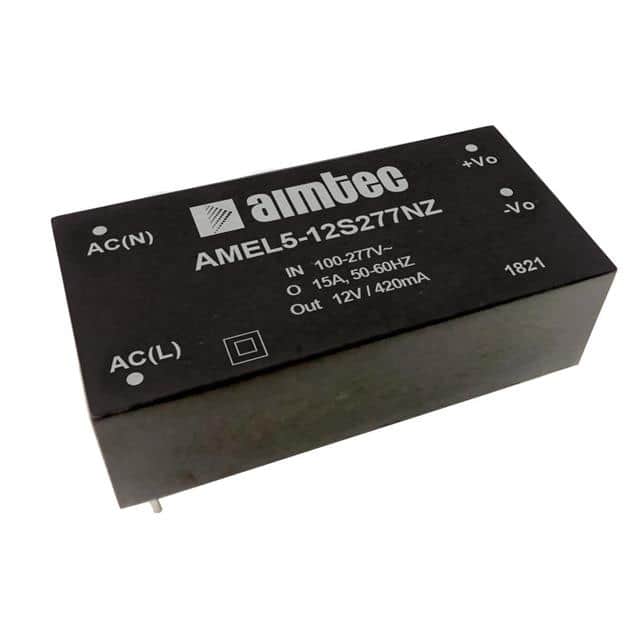

The Aimtec AMEL5-12S277NZ-ST is an enclosed AC/DC converter designed for reliable power conversion in industrial applications. It offers a universal input voltage range of 85-305VAC and provides a regulated 12V output with a maximum power of 5W and current of 420mA.
Key electrical specifications include a high isolation voltage of 4000VAC and an efficiency of 77% at 230VAC. The converter operates within a wide temperature range of -40°C to 70°C, making it suitable for demanding environments. It also features standard protections such as output short circuit, over-current, and over-voltage protection.
This model is designed for chassis mounting, offering flexibility in system integration. Its compact dimensions (76.0mm x 31.5mm x 24.2mm) and robust construction make it a practical choice for various ITE (Commercial) applications.
The series offers features like universal input, high isolation, and regulated output, along with protections for enhanced system safety and reliability. The AMEL5-12S277NZ-ST is a component within the broader AMEL5 series, known for its cost-effectiveness and improved performance due to production automation.
The output voltage is 12V.
The maximum output current is 420mA.
The input voltage range is 85-305VAC.
The operating temperature range is -40°C to 70°C.
It uses chassis mount.
The isolation voltage is 4000VAC.
It includes output short circuit, over-current, and over-voltage protection.
