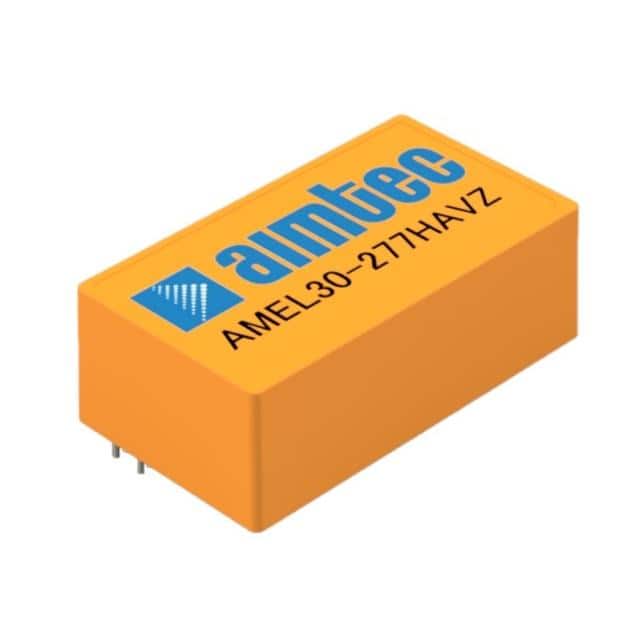

The Aimtec AMEL30-12S277HAVZ-STD is an enclosed AC-DC power supply module designed for industrial applications. It provides a 30W output power with a 12V output voltage and a 12V secondary output, drawing from a universal input voltage range of 85-305 VAC.
Key electrical specifications include a typical efficiency of 90% at 230VAC and a low no-load power consumption of 0.1W. The converter features high isolation of 4200 VAC and includes standard protections such as output short circuit, over-current, and over-voltage protection.
Designed for robust operation, it has an operating temperature range of -40°C to 85°C, with full power available up to 50°C. The unit is suitable for DIN rail mounting, with dimensions of 54.1mm x 37.1mm x 96.0mm, making it a versatile component for various industrial control and instrumentation systems.
The AMEL30-12S277HAVZ-STD has dual 12V output voltages.
The input voltage range is 85-305 VAC.
The power rating is 30W.
The efficiency is typically 90% at 230VAC.
The operating temperature range is -40°C to 85°C.
Yes, it includes output short circuit, over-current, and over-voltage protection.
It uses DIN Rail mounting.
