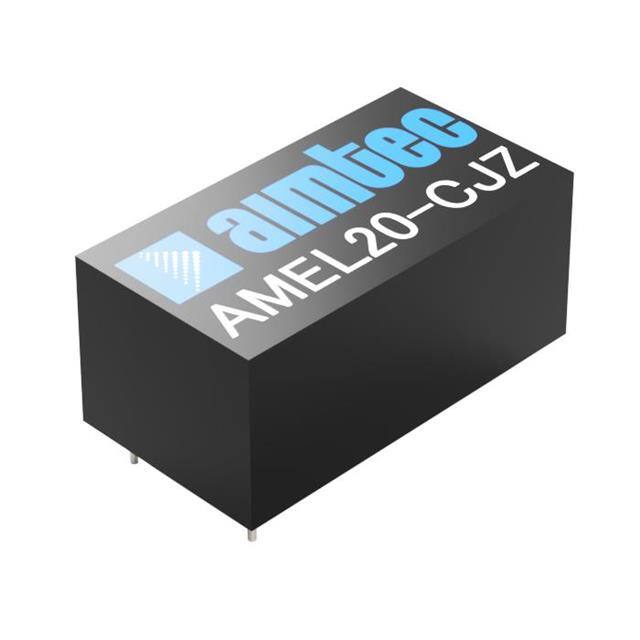

The Aimtec AMEL20-24SCJZ-ST is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a 20W output power with a 24V output voltage and a current rating of 800 mA.
This converter features universal input and offers 3 kV of isolation voltage. It is designed for chassis mounting and operates within a temperature range of -20°C to 75°C with derating. The dimensions are 76.0mm x 31.5mm x 32.3mm.
Key specifications include an efficiency of 83% and compliance with standards such as 60950-1 and 62368-1. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1 Unlimited.
The output voltage is not specified in the provided data.
The power rating is 19W.
It supports chassis mount.
The operating temperature range is -20°C to 75°C (With Derating).
The dimensions are 76.0mm x 31.5mm x 32.3mm.
It complies with standards 60950-1 and 62368-1.
The RoHS status is RoHS3 Compliant.
