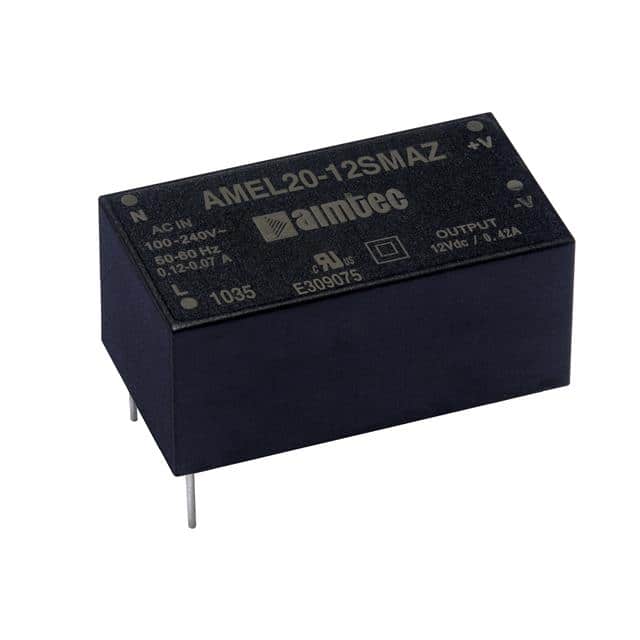

AMEL20-12SMAZ Aimtec AMEL20-12SMAZ is an AC/DC converter module with a 12V 1.66A output and 20W power rating. It features universal AC input and high isolation voltage.
Mfr Part #:

AMEL20-12SMAZ

Available from 1 distributors
Mfr Name: Aimtec
Aimtec
Aimtec AMEL20-12SMAZ is an AC/DC converter module with a 12V 1.66A output and 20W power rating. It features universal AC input and high isolation voltage.
✓ Total Stock: 24 pcs

AMEL20-12SMAZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AMEL20-12SMAZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Lead Spacing
Lead Style
Medical Grade
Mounting Type
Number of Outputs
Operating Temperature
Output Current
Output Power
Package / Case
Power (Watts)
Storage Temperature
Type
Voltage
View Similar Products (0)

AMEL20-12SMAZ Description

Short technical summary and product information.

The Aimtec AMEL20-12SMAZ is a 20-watt AC-DC converter module belonging to the AMEL20-MAZ series. It delivers a single regulated 12V output at 1.66A and accepts a universal input of 90 to 264 VAC or 130 to 370 VDC with a frequency range of 47 to 440 Hz. The module provides 4000 VAC input-to-output isolation and includes overload, over-voltage, and short circuit protection. It achieves up to 80% efficiency at 115 VAC and 79% at 230 VAC.



The converter is housed in a compact 5-DIP through-hole package measuring 56.5 mm by 30.5 mm by 25.1 mm. Its operating temperature range spans -40°C to 70°C with derating. The AMEL20-12SMAZ is designed for commercial ITE and medical applications and carries CB, CE, and cURus safety approvals.

AMEL20-12SMAZ Quick Information

Product Type: AC/DC Converter
Series: AMEL20-MAZ
Canonical Name: Aimtec AMEL20-12SMAZ AC-DC Converter, 12V Output, 20W
Subcategory: Board-Mount Power Supplies

AMEL20-12SMAZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 20
REACH Status: REACH Unaffected

AMEL20-12SMAZ Features

  • 12V DC output at 1.66A (20W).
  • Universal 90-264 VAC input range.
  • 4000 VAC input-to-output isolation.
  • Overload, over-voltage, short circuit protection.
  • Compact 5-DIP through-hole module.

AMEL20-12SMAZ Applications

  • Ideal for board-mount power in ITE equipment.
  • Suitable for medical device power supplies.
  • Used in industrial control systems.
  • Perfect for space-constrained embedded designs.

AMEL20-12SMAZ FAQs

3 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the AMEL20-12SMAZ?

The AMEL20-12SMAZ accepts a universal input of 90 to 264 VAC or 130 to 370 VDC.

What output voltage and current does the AMEL20-12SMAZ provide?

It provides a single 12V output with a maximum current of 1.66A, for a total power of 20W.

What is the operating temperature range for this converter?

The operating temperature range is -40°C to 70°C with derating.
