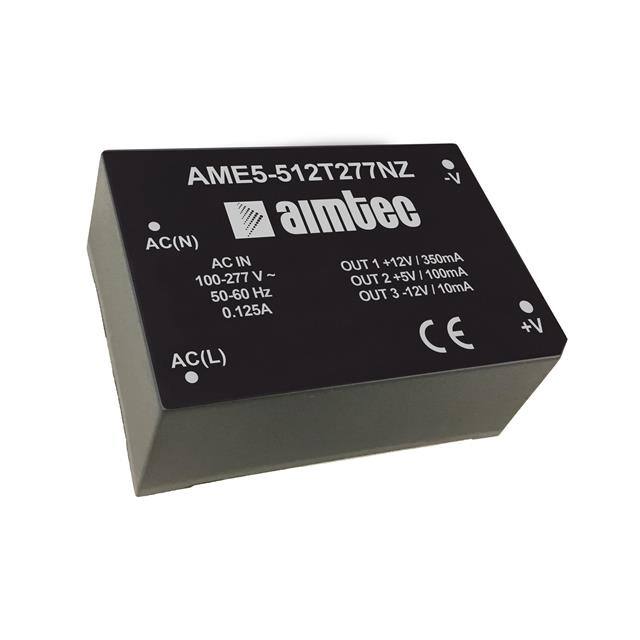

The Aimtec AME5-512T277NZ-120 is an AC/DC converter designed for various industrial applications. It provides three regulated output voltages: +12V, +5V, and -12V, with a total maximum output power of 4.8W. The converter offers a universal input voltage range of 85-305VAC or 100-430VDC.
Key features include high isolation voltage of 3000VAC, ensuring system safety and reliability. It operates within a wide temperature range of -40°C to +80°C, with derating applied above 60°C. The unit also includes standard protections such as output short circuit and over-voltage protection.
This converter is housed in an 8-DIP module package and utilizes through-hole mounting. Its efficiency is rated at 71% at 230VAC. The AME5-512T277NZ-120 is suitable for applications requiring stable, regulated power in demanding environments.
The Aimtec AME5-512T277NZ-120 provides three regulated output voltages: +12V, +5V, and -12V.
The maximum output power for the AME5-512T277NZ-120 is 4.8W.
The input voltage range is 85-305VAC or 100-430VDC.
The isolation voltage is rated at 3000VAC.
The operating temperature range is -40°C to +80°C, with derating applied above 60°C.
This converter is mounted using the through-hole method.
