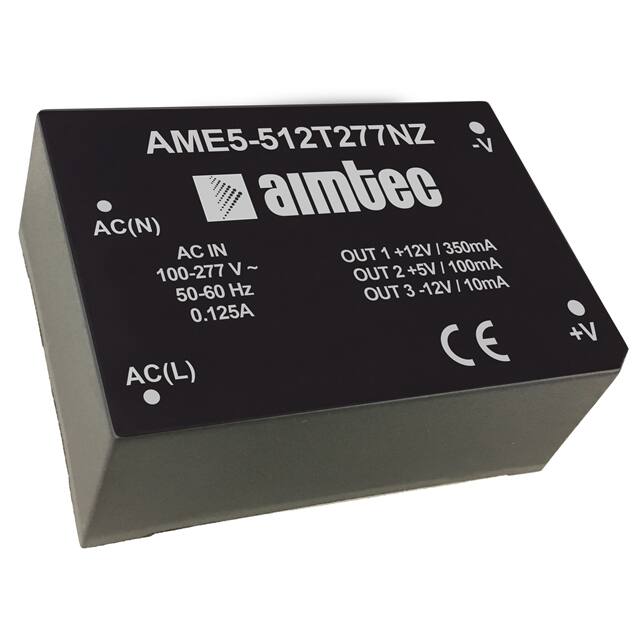

The Aimtec AME5-512T277NZ is an encapsulated AC-DC converter designed for various applications including EV chargers, power grids, instrumentation, industrial controls, and communication systems. It features a universal input voltage range of 85-305VAC or 100-430VDC.
This converter provides three regulated output voltages: +12V at 350mA, +5V at 100mA, and -12V at 10mA, with a total maximum output power of 4.8W. It boasts a high isolation voltage of 3000VAC for enhanced reliability and system safety. The operating temperature range is -40°C to +80°C, with full power available up to 60°C.
Key electrical specifications include a typical efficiency of 71% at 230VAC, low ripple and noise of 100mV(p-p), and standard protections such as output short circuit (OSCP) and over-voltage protection (OVP) for the +12V output. The device has a high MTBF of 300,000 hours.
Packaged in an 8-DIP module, the AME5-512T277NZ is designed for through-hole mounting. Its dimensions are 48.5mm in length, 36.0mm in width, and 20.5mm in height.
The input voltage range is 85-305 VAC or 100-430 VDC.
It provides +12V at 350 mA, +5V at 100 mA, and -12V at 10 mA.
The operating temperature range is -40°C to +80°C.
The package is an 8-DIP Module with through-hole mounting.
It provides 3000 VAC input-to-output isolation.
Yes, it has continuous short circuit protection with auto recovery.
