| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

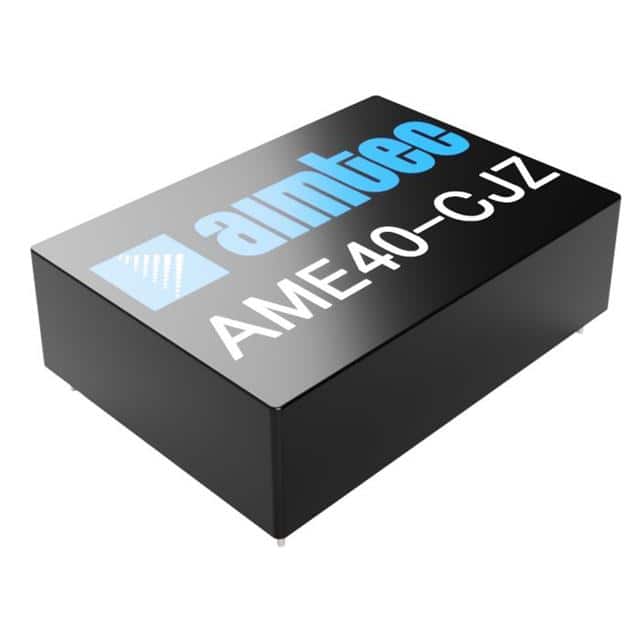

The Aimtec AME40-5SCJZ-ST is a 40 Watt AC-DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 85-264 VAC or 100-370 VDC, providing a stable 5V output at up to 8A.
This converter boasts an efficiency of up to 84% and a typical efficiency of 82% at 230VAC. Key electrical features include 3kV I/O isolation, ±0.5% line regulation, and ±1% load regulation for the single output. It also offers continuous short circuit protection and over-voltage protection.
The unit is designed for chassis mounting and has a compact footprint with dimensions of 135.1mm x 70.1mm x 33.5mm. The operating temperature range is -40°C to +70°C with derating. It meets standard 60950-1 safety standards and is CE, cURus approved.
The AME40-5SCJZ-ST provides a 5V DC output voltage.
The maximum output current is 8A.
The input voltage range is 85-264 VAC or 100-370 VDC.
The typical efficiency at 230VAC is 82%.
The operating temperature range is -40°C to +70°C.
The I/O isolation voltage is rated at 3000 VAC.
It is designed for chassis mounting.
