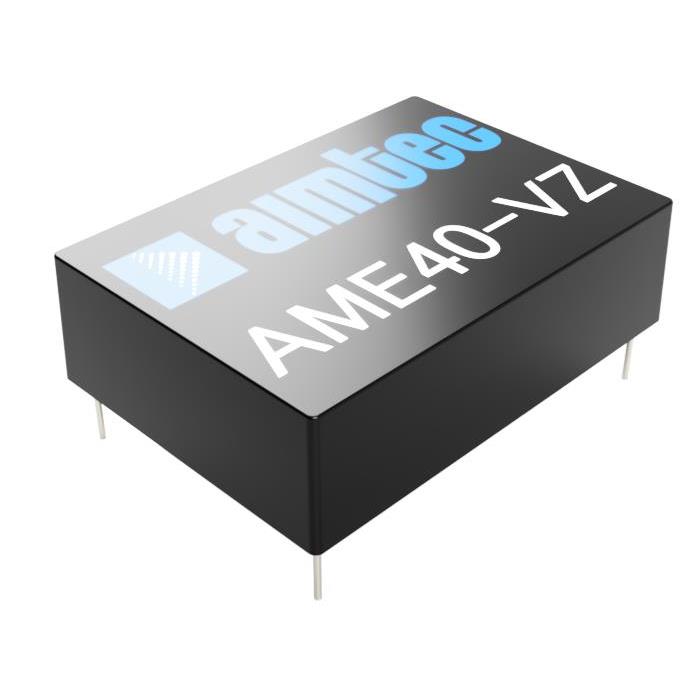

The Aimtec AME40-24SVZ is an enclosed AC/DC converter designed for ITE (Commercial) applications. It operates with a wide input voltage range of 85 to 264 VAC or 100 to 370 VDC, providing flexibility for various power systems.
This converter delivers 40W of power with a single output and a maximum current of 1.67A. It boasts an efficiency of 84% and features universal input and through-hole mounting. The operating temperature range is -40°C to 70°C with derating.
With dimensions of 89.0mm x 63.5mm x 25.0mm, the AME40-24SVZ is suitable for board-level integration. It is RoHS3 compliant and has an MSL rating of 1 Unlimited.
The input voltage range is 85 to 264 VAC or 100 to 370 VDC.
The maximum output current is 1.67A.
The power rating is 40W.
The operating temperature range is -40°C to 70°C with derating.
It is mounted using the through-hole method.
It is RoHS3 Compliant.
The MSL is 1 Unlimited.
