| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

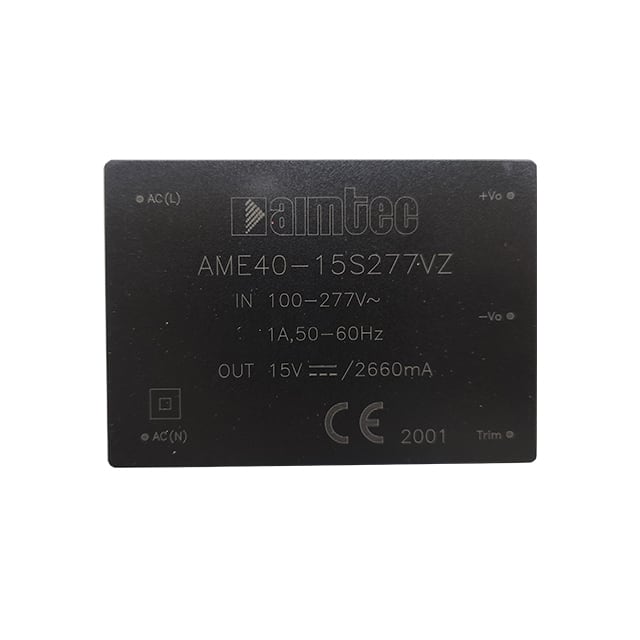

The Aimtec AME40-15SVZ-ST is an enclosed AC/DC converter designed for commercial ITE applications. It delivers 40W of power with a 15V output voltage and a current rating of 2.66A. This converter features a universal input and offers 4kV of isolation voltage.
Designed for easy integration, it utilizes a chassis mount for secure installation. The operating temperature range is from -40°C to 70°C, ensuring reliable performance in various environments. Its dimensions are 135.0mm in length, 70.0mm in width, and 33.5mm in height.
Compliance includes RoHS3 status. The unit has an efficiency of 84% and is suitable for applications requiring a stable and efficient power conversion solution.
The operating temperature range is -40°C to 70°C.
The output voltage is 15V and the output current is 2.66A.
The efficiency is 84%.
The isolation voltage is 4kV.
The mounting type is chassis mount.
The dimensions are 135.0mm x 70.0mm x 33.5mm (5.32" x 2.76" x 1.32").
The power rating is 40W.
