| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

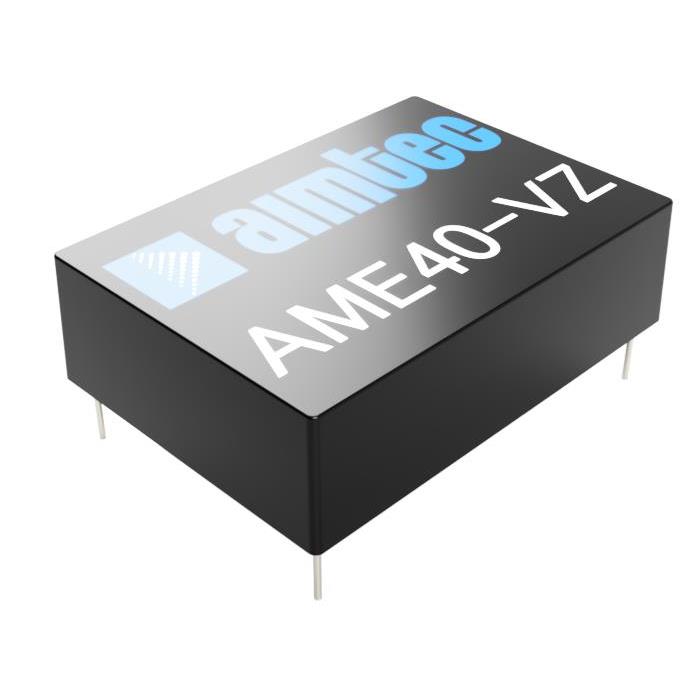

The Aimtec AME40-12SVZ is an enclosed AC/DC converter with a power rating of 40W and an output current of 3.33A. It operates with a universal input voltage range of 85 to 264 VAC or 100 to 370 VDC, making it suitable for various global applications. The converter boasts an efficiency of 84% and features universal input capabilities.
Designed for Through Hole mounting, this AC/DC converter comes in a 7-DIP Module, 5 Leads package. It operates within a temperature range of -40°C to 70°C with derating. The dimensions are 89.0mm in length, 63.5mm in width, and 25.0mm in height. It is intended for ITE (Commercial) applications and has a single output.
Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status. However, this data is sourced from existing databases and is considered low confidence, requiring verification from official documentation.
85~264 VAC or 100~370 VDC.
3.33A maximum.
40W nominal.
84% nominal.
-40°C to 70°C with derating.
7-DIP Module, 5 leads.
Through hole.
