| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

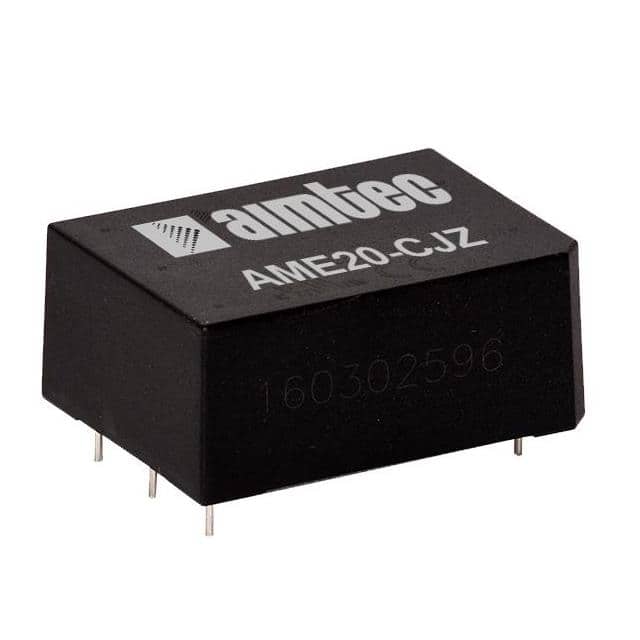

The Aimtec AME20-9SCJZ is a 19 Watt AC-DC converter designed for ITE (Commercial) applications. It accepts a universal input voltage range of 85-264 VAC or 100-370 VDC, providing a stable 9V output at a maximum current of 2.1A.
This converter boasts an efficiency of up to 80% at 230VAC and features continuous short circuit protection, over-current protection, and over-voltage protection. The operating temperature range is -40°C to +70°C. It is housed in a compact 9-DIP Module, 6 Leads package and is designed for through-hole mounting.
Key electrical specifications include a voltage accuracy of ±2%, line regulation of ±0.5%, and load regulation of ±1%. The I/O isolation is rated at 3000VAC. The unit is CE and cURus approved, making it suitable for various industrial and commercial applications requiring reliable power conversion.
The input voltage range is 85-264 VAC or 100-370 VDC.
The output voltage is 9V.
The maximum output current is 2.1A.
The typical efficiency is 80% at 230VAC.
Over-current, over-voltage, and continuous short-circuit protection.
The input-to-output isolation voltage is 3000VAC.
The operating temperature range is -40°C to +70°C.
