| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

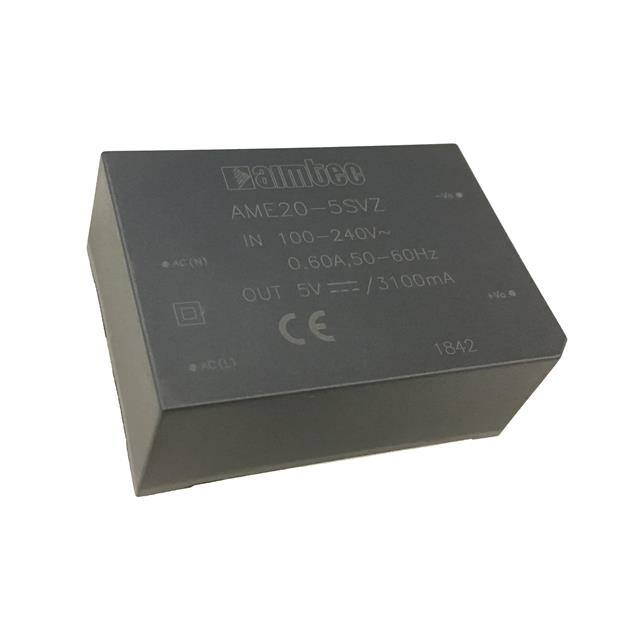

This Aimtec AME20-5SVZ-ST is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single output with a 5V rating and a maximum current of 3.1A, delivering 20W of power.
The converter features a chassis mount type and operates with universal input, offering flexibility in power sources. Its efficiency is rated at 77%, and it includes features like DC input capability. The operating temperature range is from -40°C to 85°C, with derating applied.
Key specifications include an isolation voltage of 4 kV and compliance with standard 62368-1. The physical dimensions are 96.0mm in length, 54.1mm in width, and 31.0mm in height. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
-40°C to 85°C with derating.
4 kV.
77%.
3.1 A.
1 output.
Chassis mount.
DC input capable and universal input.
