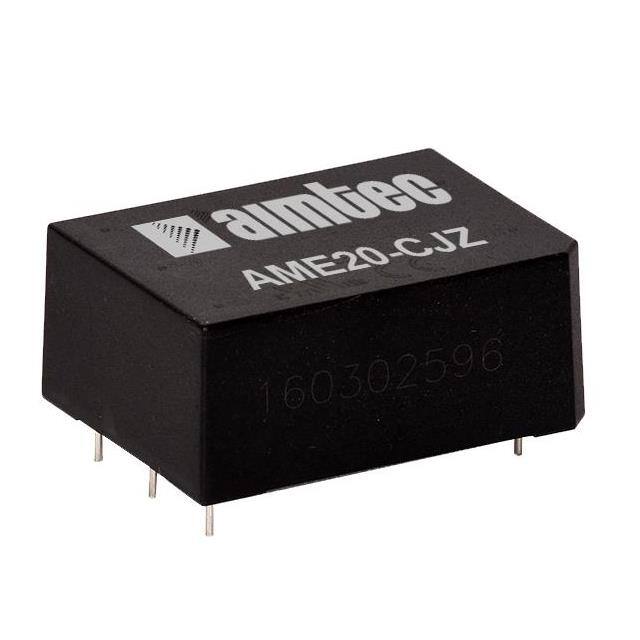

The Aimtec AME20-524DCJZ-ST is a 20 Watt AC-DC converter designed for ITE (Commercial) applications. This enclosed unit features a chassis mount for easy integration into systems.
It accepts a wide input voltage range of 85-264VAC and provides an asymmetric separated dual output with a main 5V output and an auxiliary ±24V output. The maximum output current for the main output is 2.5A, and for the auxiliary output is 0.3A. The converter boasts a typical efficiency of 77% at 230VAC.
Key electrical specifications include ±2% voltage accuracy, ±0.5% line regulation for the main output, and ±3% load regulation for the main output. It offers 3000VAC I/O isolation and continuous short circuit protection. The operating temperature range is -40°C to +70°C with derating.
With dimensions of 96.0mm x 54.1mm x 32.0mm, this converter is compact. It is compliant with standard 60950-1 and is Energy Star compliant. The unit is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
The input voltage range is 85-264VAC (47-63Hz) or 100-370VDC.
The converter provides 5V at 2.5A on the main output and 24V at 0.3A on the auxiliary output.
The operating temperature range is -40°C to 70°C with derating.
The package is enclosed with chassis mount.
The converter includes continuous short circuit protection, over current protection, and over voltage protection.
Input to output isolation is 3000VAC.
Typical efficiency is 77% at 230VAC.
