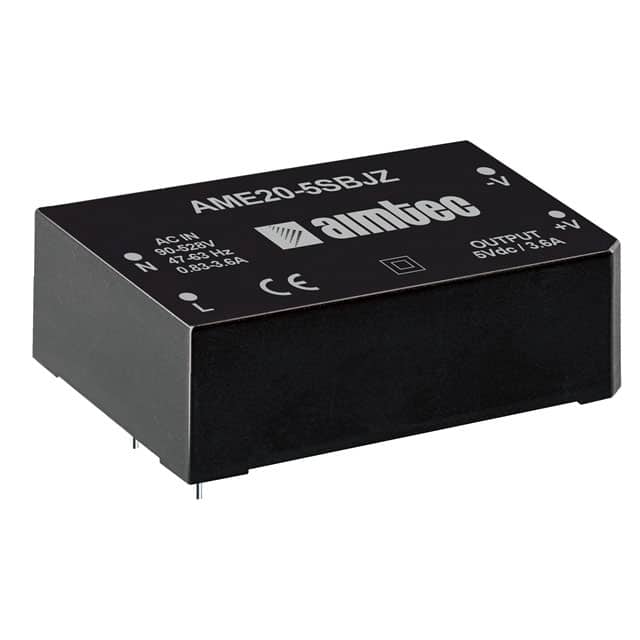

The Aimtec AME20-24SBJZ is a 20 Watt AC/DC converter from the AME20-BJZ series. It features a wide input voltage range of 90-528 VAC or 100-745 VDC, making it suitable for global applications. This enclosed converter provides a single 24V output at a maximum current of 0.833A.
Key electrical specifications include an efficiency of up to 83%, line regulation of ±0.5%, and load regulation of ±1.0%. It offers robust protection features such as over-current protection (130-400% of Iout) and over-voltage protection (30VDC clamp for 24V output). The isolation voltage between input and output is rated at 4000 VAC.
Designed for Through Hole mounting, the AME20-24SBJZ has dimensions of 70.0mm x 48.0mm x 30.0mm. It operates within a temperature range of -40°C to +70°C and is suitable for ITE (Commercial) applications. The converter meets Class II protection standards and is CE approved.
The AME20-24SBJZ accepts AC input from 90 to 528 VAC (47-63 Hz) or DC input from 100 to 745 VDC.
The output is 24 VDC at a maximum current of 0.833 A, providing a maximum power of 20 W.
The AME20-24SBJZ operates from -40°C to +70°C with derating above +55°C and below -10°C.
The dimensions are 70.0 x 48.0 x 30.0 mm and weight is 160 g for the PCB mountable model.
It includes over current protection (130-400% of Iout), over voltage protection (30 VDC clamp), and short circuit protection with hiccup and auto recovery.
Typical efficiency is 83%.
The isolation voltage is 4000 VAC for 60 seconds.
