| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

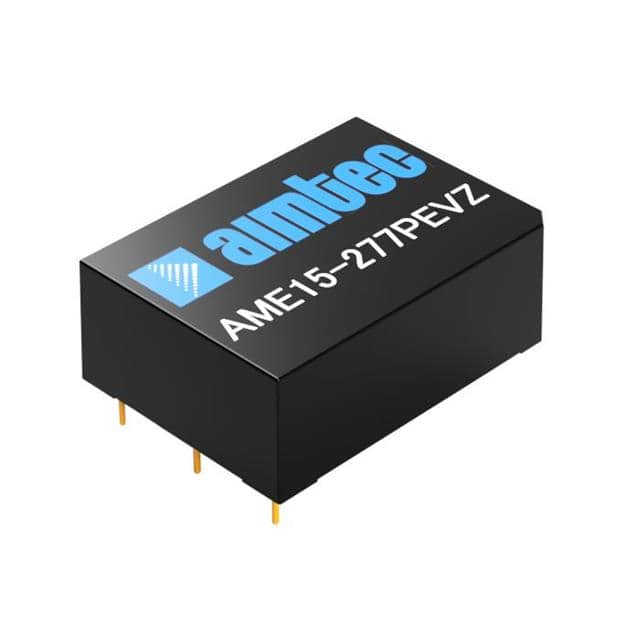

The Aimtec AME15-12S277PEVZ-B is an enclosed AC-DC converter designed for various applications. It provides a 15W output power with a regulated 12V output voltage and a maximum current of 1.25A. The input voltage range is versatile, accepting 85-305VAC or 100-430VDC, making it suitable for global use.
Key electrical specifications include an efficiency of 82% at 230VAC, an isolation voltage of 4200VAC, and low ripple and noise of 50mVp-p typical. The converter includes standard protection features such as output short circuit, over-current, and over-voltage protection. It also boasts a high MTBF of 500,000 hours.
Mechanically, this converter features Through Hole mounting and comes in a 10-DIP Module package with 5 leads. Its dimensions are 62.0mm in length, 45.0mm in width, and 22.5mm in height. The operating temperature range is -40°C to 85°C, with derating applied. It complies with standard 62368-1.
85-305VAC or 100-430VDC.
12V at 1.25A maximum.
15W.
4200VAC.
Output short circuit, over-current, and over-voltage protection.
-40°C to 85°C with derating.
10-DIP Module, 5 Leads, through-hole mounting.
