| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Protection | |
| Region Utilized | |
| SVHC Present | |
| Storage Temperature | |
| Turn On Time | |
| Voltage | |
| Weight | |
| Width |

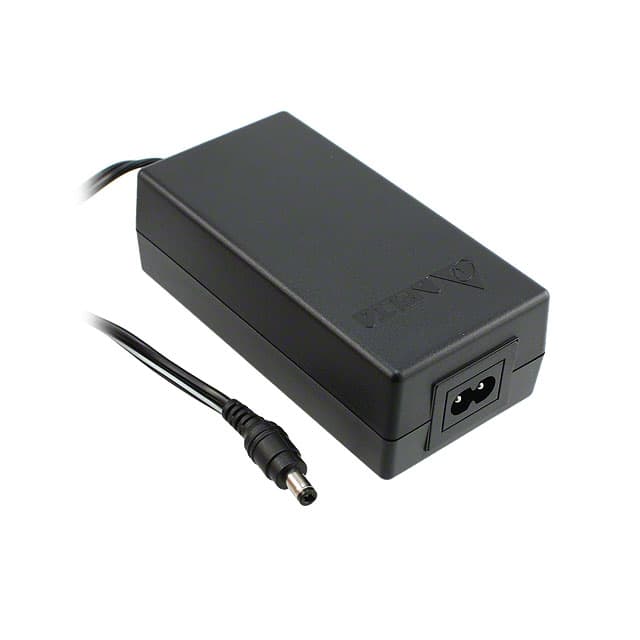

The Delta Electronics AMD-12V030W2AA is a 30-watt switch-mode medical adapter designed for universal use with its wide input voltage range of 90-264VAC. It provides a regulated 12V output with a nominal current of 2.5A.
This adapter meets medical safety standards including UL60601-1, EN60601-1, and CSA60601-1. It offers protection features such as overvoltage, overload, and over-temperature protection. The device operates within a temperature range of 0°C to 40°C and has a minimum holdup time of 15ms.
Designed with a compact plastic case, it is suitable for various applications requiring reliable power. The input connector is an IEC 320-C8 type, and the output connector is a barrel plug measuring 2.5mm ID x 5.5mm OD with positive center polarization. It boasts an efficiency greater than 83.5% and a no-load power consumption of less than 0.3W, complying with Energy Star Level V standards.
The output voltage is 12V ±2% and the output current is 2.5A (30W total).
It accepts 90-264 VAC at 47-63 Hz.
The operating temperature range is 0°C to 40°C.
Over current (auto recovery), over voltage (latch), and over temperature (latch) protection.
Minimum efficiency is 83.5% at 115VAC and nominal load.
It is a Class II desktop adapter with an IEC 320-C8 input connector and a barrel plug output (2.5mm ID x 5.5mm OD x 9.5mm, positive center).
No-load power consumption is less than 0.3W.
