Mfr Part #:

AMC1601AR-B-Y6WFDY-STY

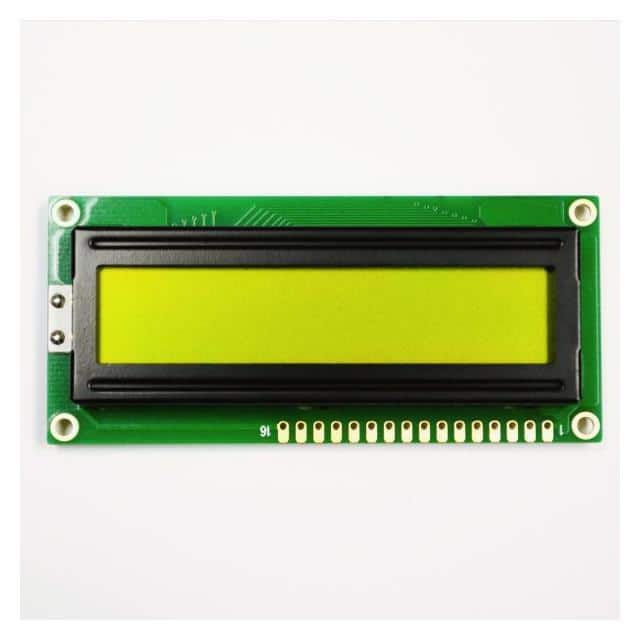

Name: AMC1601AR-B-Y6WFDY-STY
Brand: Orient Display
SKU: AMC1601AR-B-Y6WFDY-STY

Mfr Name: Orient Display

Description:

16x1 Character STN Pos. YG BL

Stock on Request

AMC1601AR-B-Y6WFDY-STY Description

Short technical summary and product information.

16x1 Character STN Pos. YG BL

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Display Modules - LCD, OLED Character and Numeric
Manufacturer Name	Orient Display
Backlight	LED - Yellow/Green
Character Format	5 x 8 Dots w/Cursor
Character Size	3.07mm H x 6.56mm W
Controller Type	ST7066Uv22
Display Format	16 x 1
Display Mode	Transflective
Display Type	STN - Super-Twisted Nematic
Dot Size	0.55mm W x 0.75mm H
Interface	Parallel
Number of Characters	16
Operating Temperature	-20°C ~ 70°C
Outline L x W x H	80.00mm x 36.00mm x 14.00mm
Viewing Area	64.50mm L x 13.80mm W
Voltage	4.5V ~ 5.5V
