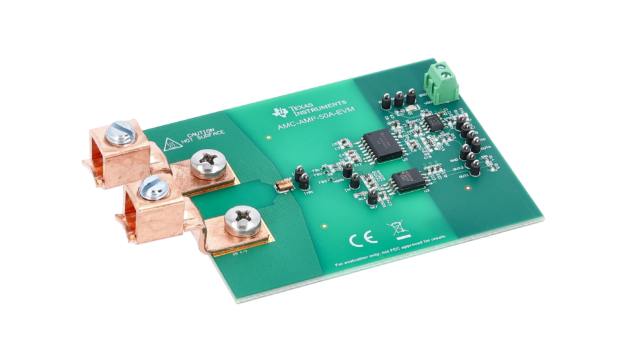

The AMC1301DWVR from Texas Instruments is a precision, reinforced isolated amplifier optimized for current sensing using shunt resistors. It provides a ±250 mV input voltage range and a fixed gain of 8.2 V/V. The device boasts low DC errors, including a maximum offset error of ±0.2 mV and a maximum offset drift of ±3 µV/°C.
This isolated amplifier features a barrier highly resistant to magnetic interference, certified for reinforced isolation up to 7070 V PEAK according to DIN EN IEC 60747-17 and UL1577 standards, supporting a working voltage of up to 1 kV RMS. It operates on 3.3-V power supply on both high-side and low-side.
The AMC1301DWVR is housed in a SOIC (DWV) surface-mount package with an area of 67.275 mm². It is fully specified over an extended industrial temperature range of -40°C to +125°C, making it suitable for demanding environments. System-level diagnostic features are also included.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.07 | $2.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak-to-peak input voltage range is ±250 mV.
The working isolation voltage is 1000 Vrms.
The transient isolation voltage is 7000 VPK.
The minimum CMTI is 15 kV/µs.
The maximum input offset voltage is ±0.0002 V.
The typical input offset drift is ±1 µV/°C.
The operating temperature range is -55 to 125 °C.
The fixed gain is 8.2 V/V.
The maximum offset error is ±0.2 mV.
The maximum offset drift is ±3 µV/°C.
The maximum gain error is ±0.3%.
The maximum gain drift is ±50 ppm/°C.
The nonlinearity is 0.03% maximum.
The device operates at 3.3 V on both high-side and low-side.
The reinforced isolation voltage is 7070 V PEAK.
The isolation voltage is 5000 Vrms for 1 minute.
The extended industrial operating temperature range is -40°C to +125°C.
The package type is SOIC (DWV).
