BAT54JFILM-HQ
STMicroelectronics
The STMicroelectronics BAT54JFILM-HQ is a Schottky diode array designed for surface mount applications. It offers a 40V reverse voltage and 200mA average rectified current per diode.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,265 pcs
|
5265 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type |

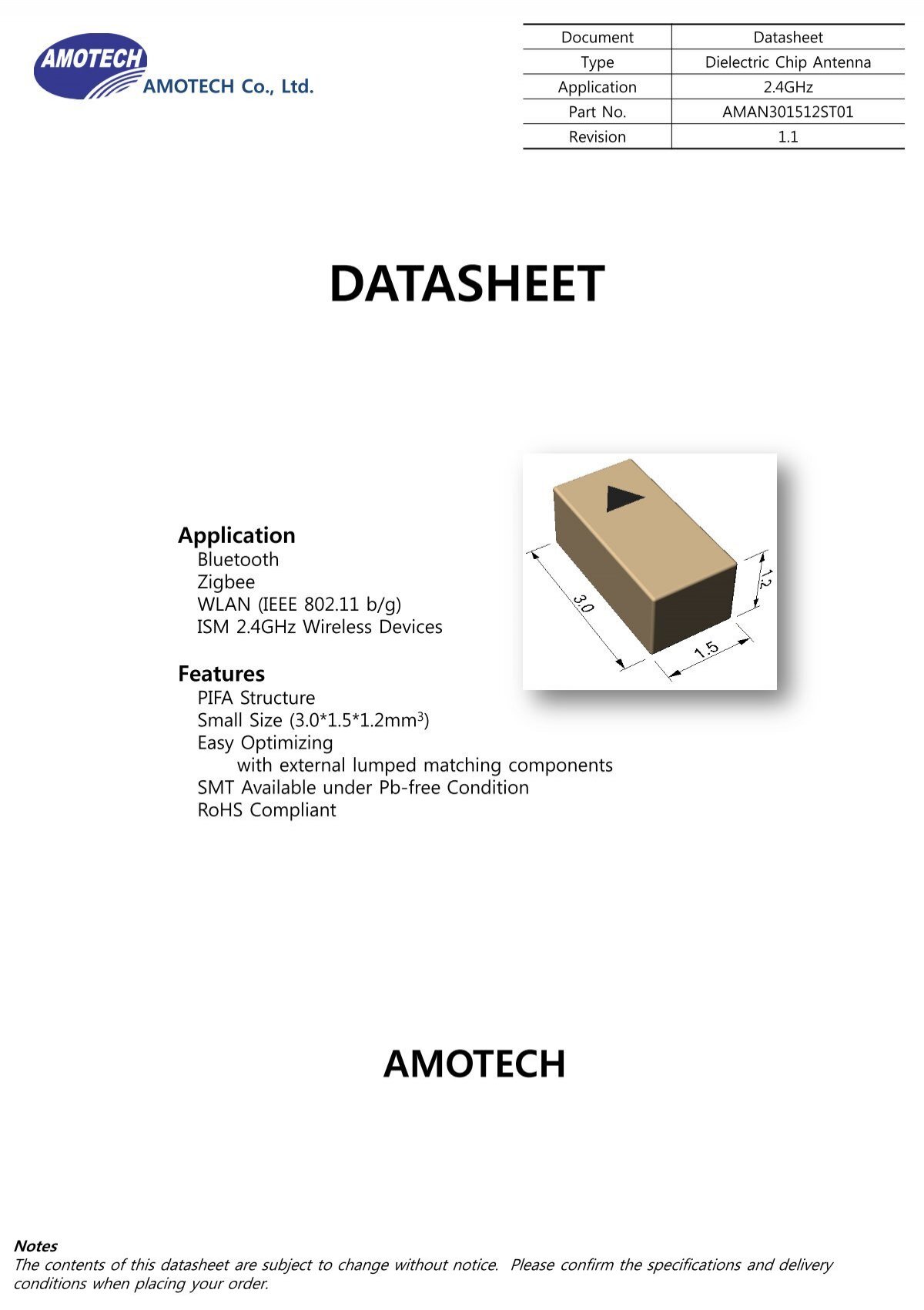

The AMOTECH AMAN301512ST01 is a dielectric chip antenna operating in the 2.4GHz frequency band, suitable for various wireless communication devices. This antenna features a PIFA structure and a compact size of 3.0*1.5*1.2mm, making it easy to integrate into space-constrained designs.
Key electrical characteristics include an efficiency of up to 69.58% and an average gain of -1.58 dBi at 2442 MHz. The antenna is designed for SMT (Surface Mount Technology) and is available under Pb-free conditions, complying with RoHS standards.
This component is ideal for applications requiring reliable 2.4GHz wireless connectivity, such as Bluetooth, Zigbee, and WLAN (IEEE 802.11 b/g) devices. Its small footprint and SMT compatibility facilitate easy optimization with external lumped matching components during the design process.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AMAN301512ST01 antenna operates at a center frequency of 2400 MHz, 2442 MHz, and 2485 MHz.
The efficiency of the AMAN301512ST01 antenna at 2442 MHz is 69.58%.
The average gain of the AMAN301512ST01 antenna at 2442 MHz is -1.58 dBi.
The dimensions of the AMAN301512ST01 antenna are 3.0*1.5*1.2 mm^3.
The AMAN301512ST01 antenna uses SMT (Surface Mount Technology) mounting.
