| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

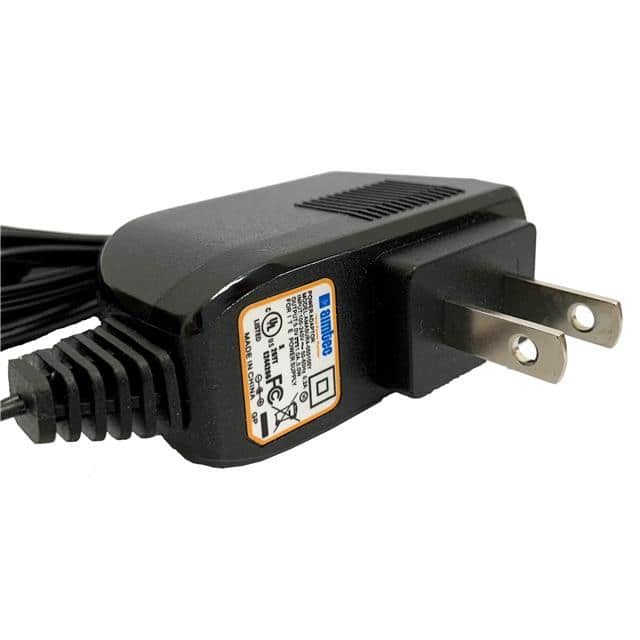

This Aimtec AMA5BR1-033160Y is a compact AC/DC wall mount adapter designed for ITE (Commercial) applications. It features a universal input voltage range of 90-264VAC and a regulated 3.3VDC output capable of delivering up to 1.6A, for a maximum power of 5.28W.
The adapter operates within a temperature range of 0°C to 40°C and offers an isolation voltage of 3000VAC for enhanced reliability and safety. It meets IEC62368-1 standards and complies with DoE Level VI efficiency requirements. The unit includes output short circuit and over-current protection.
Key specifications include a low no-load power consumption of 100mW and a cord length of 1.50m (59"). The output connector is a Barrel Plug with a 1.35mm I.D. x 3.5mm O.D. x 9.5mm size and positive center polarization. The input connector is a BS 1363 type, suitable for use in the United Kingdom.
The input voltage range is 90 to 264 VAC.
It provides 3.3 VDC at up to 1.6 A, with a maximum power of 5.28 W.
The operating temperature range is 0°C to 40°C.
It is a wall mount (Class II) adapter.
The typical efficiency is 74% and it meets Level VI efficiency standard.
The isolation voltage is 3000 VAC.
The cord length is 1.50 m (59 inches).
