| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

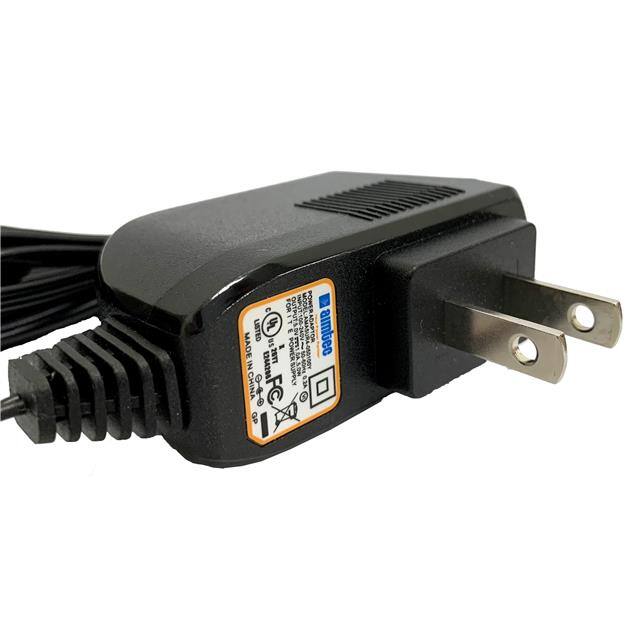

The Aimtec AMA5BK2-033160Y is a compact AC/DC wall mount adapter designed for commercial ITE applications. It offers a regulated 3.3VDC output with a maximum current of 1.6A, delivering up to 5.28W of power.
This adapter operates with a universal input voltage range of 90-264VAC and features a high isolation voltage of 3000VAC for enhanced reliability. It complies with DoE Level VI efficiency standards and meets IEC62368-1 safety requirements. The operating temperature range is from 0°C to +40°C.
Key features include low no-load power consumption of 100mW, output short circuit protection (OSCP), and output over-current protection (OCP). The adapter has a BS 1363 input connector suitable for the United Kingdom and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm). Its dimensions are 64.0mm x 25.7mm x 75.2mm, and it comes with a 1.50m cord.
The input voltage range is 90-264 VAC.
The output is 3.3 VDC at up to 1.6 A, providing 5.28 W of power.
The operating temperature range is 0°C to +40°C.
The isolation voltage is 3000 VAC.
The efficiency is 74%.
The no load power consumption is 100 mW.
It is a wall mount (Class II) adapter with a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm).
