| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

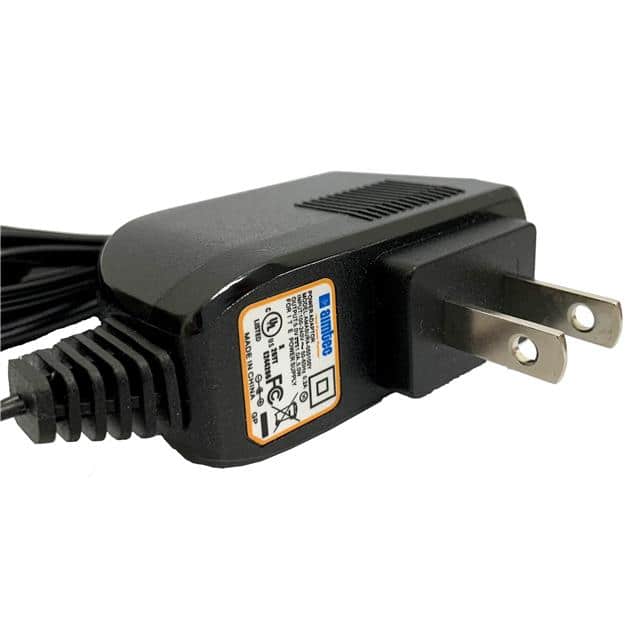

The Aimtec AMA5AU2-033160Y is a compact AC/DC wall mount adapter designed for ITE (Commercial) applications. It offers a universal input voltage range of 90-264VAC and a stable output of 3.3VDC at a maximum current of 1.6A, resulting in a maximum output power of 5.28W.
This adapter complies with DoE Level VI efficiency standards, ensuring low power consumption. It meets safety standard IEC62368-1 and EMC standards FCC Class B and CISPR22 Class B. The unit operates within a temperature range of 0°C to 40°C and features 3000VAC isolation for enhanced reliability and system safety. It also includes output short circuit and over-current protection.
The adapter has a fixed blade input connector suitable for Australia and a cord length of 59 inches (1.50m). Its dimensions are 64.0mm x 25.7mm x 75.2mm, and it is designed as a Class II wall mount unit.
The adapter provides a nominal output voltage of 3.3VDC.
The maximum output current is 1.6A.
The adapter has a maximum output power of 5.28W.
The operating temperature range is from 0°C to 40°C.
Yes, it complies with DoE Level VI efficiency.
It meets IEC62368-1 safety standards.
