| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

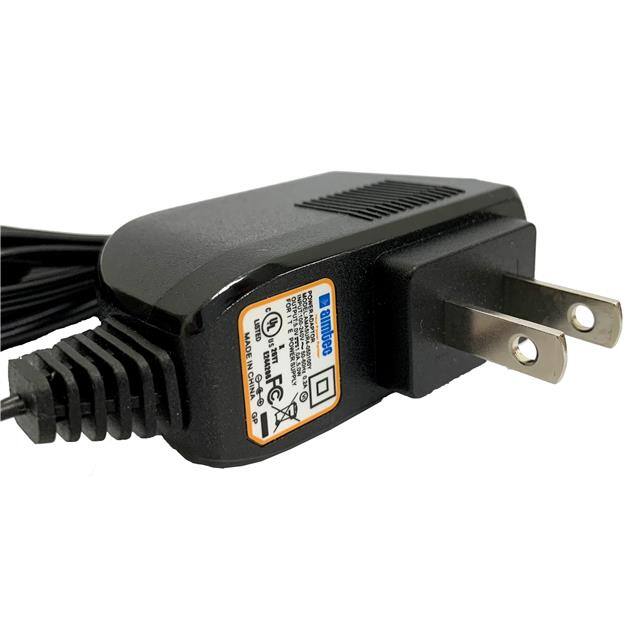

The Aimtec AMA5AR5-033160Y is an industrial-grade AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a regulated 3.3VDC output at a maximum current of 1.6A, delivering up to 5.28W of power.
This adapter features a wide universal input voltage range of 90-264VAC and operates efficiently, complying with DoE Level VI standards. It offers a high isolation voltage of 3000VAC for enhanced reliability and system safety. The operating temperature range is from 0°C to +40°C.
Designed for convenience, it has a fixed blade input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center polarization. The unit is housed in a Class II wall mount form factor and includes built-in output short circuit and over-current protection.
Key specifications include a low no-load power consumption of 100mW and a cord length of 59 inches (1.50m).
The Aimtec AMA5AR5-033160Y provides a 3.3VDC output at a maximum current of 1.6A.
The maximum power output for the AMA5AR5-033160Y adapter is 5.28W.
The input voltage range for the Aimtec AMA5AR5-033160Y is 90-264VAC.
The operating temperature range for the AMA5AR5-033160Y is 0°C to +40°C.
Yes, the AMA5AR5-033160Y complies with DoE Level VI efficiency standards.
The AMA5AR5-033160Y uses a Barrel Plug with a 2.5mm I.D. x 5.5mm O.D. x 9.5mm size and positive center polarization.
