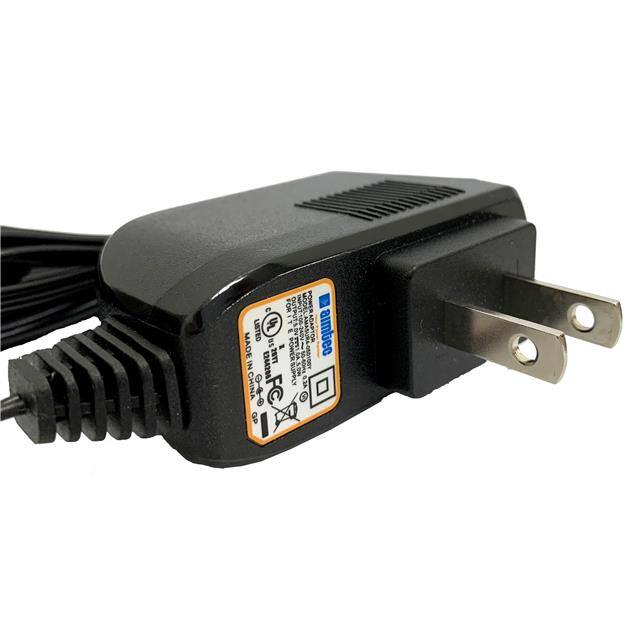

This Aimtec AMA5AR4L-033160Y is an AC/DC wall mount adapter designed for commercial ITE applications. It features a universal input voltage range of 90-264VAC and provides a regulated 3.3VDC output at up to 1.6A, delivering a maximum power of 5.28W. The adapter operates within a temperature range of 0°C to 40°C and boasts an efficiency rating of 74%, complying with DoE Level VI standards.
Designed for reliability and safety, the AMA5AR4L-033160Y includes 3000VAC isolation and protection against output short circuit and over-current conditions. It features a fixed blade input connector suitable for Australian regions and a right-angle barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The adapter's dimensions are 64.0mm x 25.7mm x 75.2mm, and it comes with a 1.50m cord length.
Compliance with IEC62368-1 is a key feature, ensuring suitability for modern electronic systems. The adapter also offers low no-load power consumption of 100mW. Its wall mount form factor (Class II) makes it convenient for various power supply needs in commercial environments.
90-264 VAC.
3.3 VDC.
1.6 A.
0°C to +40°C.
74% typical.
3000 VAC.
Wall mount (Class II).
