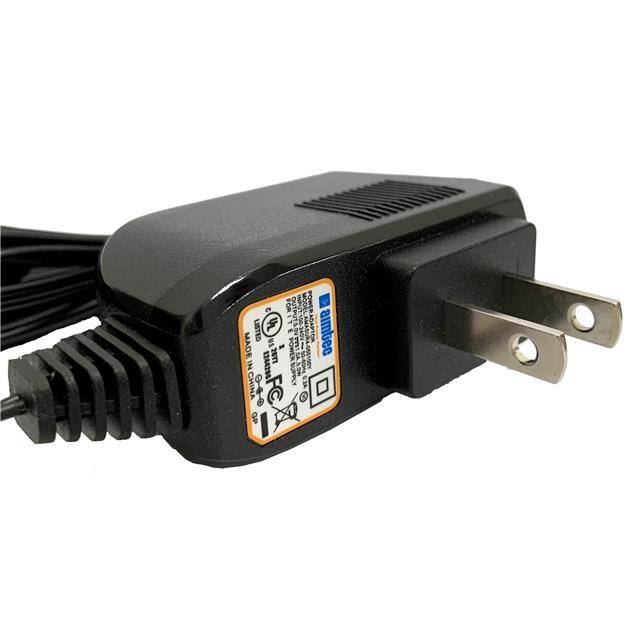

AMA5AR4-033160Y The Aimtec AMA5AR4-033160Y is an AC/DC Desktop/Wall Adapter providing 3.3V at 1.6A for a total of 5.28W. It operates with a universal input voltage range.
Mfr Part #:

AMA5AR4-033160Y

Mfr Name: Aimtec
Aimtec
The Aimtec AMA5AR4-033160Y is an AC/DC Desktop/Wall Adapter providing 3.3V at 1.6A for a total of 5.28W. It operates with a universal input voltage range.
Stock on Request

AMA5AR4-033160Y Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Cord Length
Current
Efficiency
Form
Frequency
Height
Input Connector
Input Type
Input Voltage
Length
Mounting Type
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Standard Number
Voltage
Width

AMA5AR4-033160Y Description

Short technical summary and product information.

The Aimtec AMA5AR4-033160Y is an AC/DC Desktop/Wall Adapter designed for commercial ITE applications. It offers a regulated 3.3VDC output at a maximum current of 1.6A, delivering up to 5.28W of power.



This adapter features a universal input voltage range of 90-264VAC and operates efficiently, complying with DoE Level VI standards. It provides a high isolation voltage of 3000VAC for enhanced system safety and reliability. The operating temperature range is from 0°C to 40°C.



Designed for wall mounting, it utilizes a fixed blade input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center pin. The unit includes output short circuit and over-current protection. Its dimensions are 64.0mm in length, 25.7mm in width, and 75.2mm in height.

AMA5AR4-033160Y Quick Information

Product Type: AC DC Desktop, Wall Adapter
Series: AMA5AR4
Canonical Name: Aimtec AMA5AR4-033160Y AC/DC Desktop/Wall Adapter

AMA5AR4-033160Y Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AMA5AR4-033160Y Features

  • Universal 90-264VAC input voltage range.
  • Provides 3.3VDC at 1.6A output.
  • Rated for 5.28W maximum output power.
  • Operates within 0°C to 40°C temperature range.
  • Features 3000VAC isolation for safety.

AMA5AR4-033160Y Applications

  • Powering 3.3V embedded systems and microcontrollers.
  • Ideal for low-power sensors and IoT devices.
  • Suitable for portable electronics requiring wall power.
  • Used in test equipment and instrumentation.

AMA5AR4-033160Y FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the AMA5AR4-033160Y?

90-264VAC.

What is the output voltage and current?

3.3V at 1.6A maximum.

What is the power rating?

5.28W maximum.

What is the efficiency?

74%.

What is the isolation voltage?

3000VAC minimum.

What is the operating temperature range?

0°C to 40°C.

What is the package type and connector?

Wall mount with fixed blade input and 2.1mm barrel plug output.
